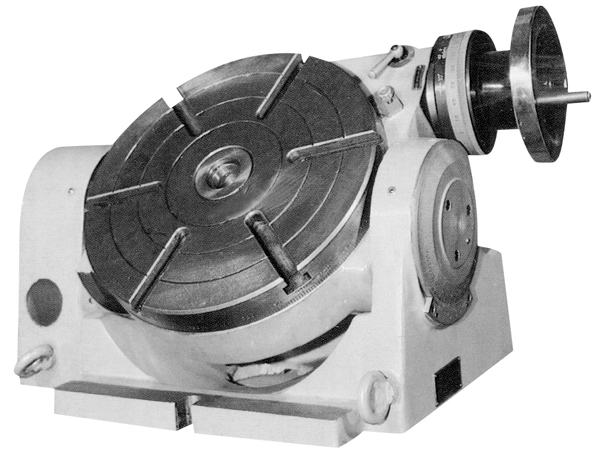

10 INCH TILTING ROTARY TABLE
Product Description
Features
•10 second vernier reading.
•Gear ratio 90:1.
•Dual positive action locks
•Low profile
•gear drive immersed in oil
•maximum cumulative spacing error: 45 seconds
Product Specifications
Table Dia.
10"
Tilting Height
8"
Range
90°
Center Height
5-1/2"
Hole
3MT
T-slot
1/2"
Base
10 x 12"
Squareness (surface to angle face)
0.0004"
Squareness (surface to center slot)
0.0008"
Parallelism (surface to base)
0.0008"
Cylindrical enter bore Concentricity
0.0008"
Taper center bore Concentricity
0.0008"
Clamping surface flatness
0.0006"
