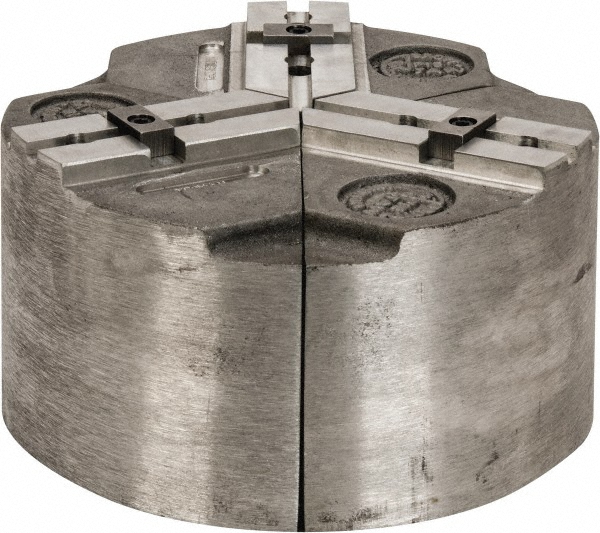

10" ABBOTT Jaws on a 12" DIAMETER American Standard Tongue & Groove EXTRA HIGH Medium Duty Aluminum Pie Jaws TG12-10MDP1
Pie Jaws are used for round and thin wall parts where pressure is applied around the entire part I.D. & O.D.
For: Atlas, Berman, Bison, Buck, BTC, Cushmen, Gator, PhaseII, Rohm, Forkhardt, PBA, Pratt Burnerd America, Strong, SCA, S.P., W&S, Nobel & Yuasa
"Why WRESTLE with those Hard to Handle Chucking Problems... USE "PIE JAWS" Aluminum CHUCK Jaws"
Made In The U.S.A
Cast Iron and Steel available
At your request an Ajax Chuck & Jaw Technician can assest in selection of the proper Jaws to fit your application. Ajax sales and service 1 (800) 543-5998
Overall Height (Inch) 4
Groove Width (Decimal Inch) 0.500
Center Distance Between Mount Holes (Decimal Inch) 2.125
Fastener Size (Decimal Inch) 1/2
Tongue Width (Decimal Inch) 0.750
Diameter (Inch) 12
Material Grade 319 Aluminum
