Product Description

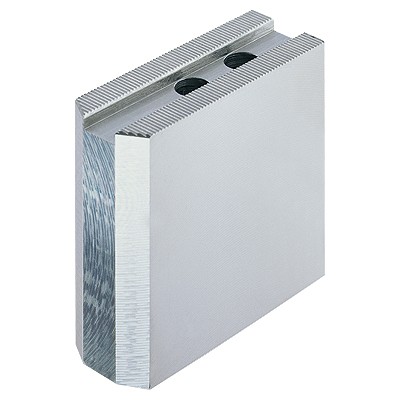

12" 1.5MM X 60 Degree Serrated 3.15 HIGH STEEL Soft Chuck Jaws for B12 Kitagawa Stong 3900-5670
STEEL
Features
•Extra-height jaws are suitable for longer workpiece, such as 4" length workpiece will need jaws with over 3" height which will increase the acuracy and stability of production process.
•Supplies maximum concentricity on finish turning operations.
•Price is for a set of 3 jaws.
•Jaws can be hardened.
•Can be bored or turned to fit workpiece.
Product Specifications
Chuck Size 12"
CRITICAL DIMENSIONS - Groove Width D 0.710 (18mm)
CRITICAL DIMENSIONS - Screw Size E 0.55 (M14)
CRITICAL DIMENSIONS - Hole Space F 1.181 (30mm)
CRITICAL DIMENSIONS - Hole to Front H 2.362
Jaw Width C 1.89
Jaw Length A 5.08
Jaw Height B 3.15 (80mm)
Weight 22.2
