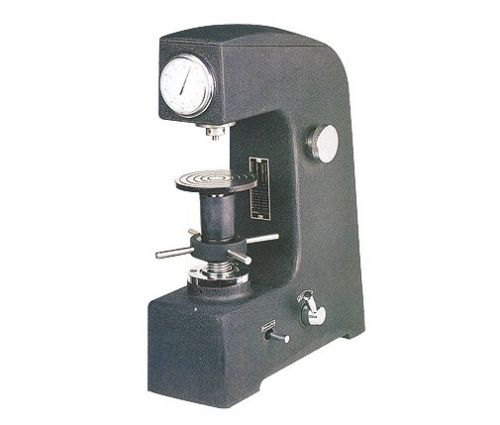

3R Rockwell Hardness Tester

3R ROCKWELL HARDNESS TESTER NEW

Features

This hardness tester is used to determine Rockwell hardness of hard alloys, quenched and unquenched steels.
It can be applied in the laboratories, scientific research institutes and colleges.

Standard Accessories Included: 5-3/4" testing table; 2-3/16" testing table; 2-3/16" testing table with "V" groove; 120° diamond penetrator; 1/16" steel ball penetrating; Rockwell A test block (1pc); Rockwell B test block (1pc); Rockwell C test block (3pc); Screwdrivers (2); Complete instruction manual; Dust-proof plastic cover.

Product Specifications
Maximum load 330 lbs.
Load range 132lbs, 220lbs, 330lbs.
Initial range load 22 lbs.
Maximum test load 6-1/4"
Depth throat 5-1/4"
Maximum depth of spindle below base 2"
Base size 7" x18"
Height 24-1/2"
Approx.. weight 209 lbs.
