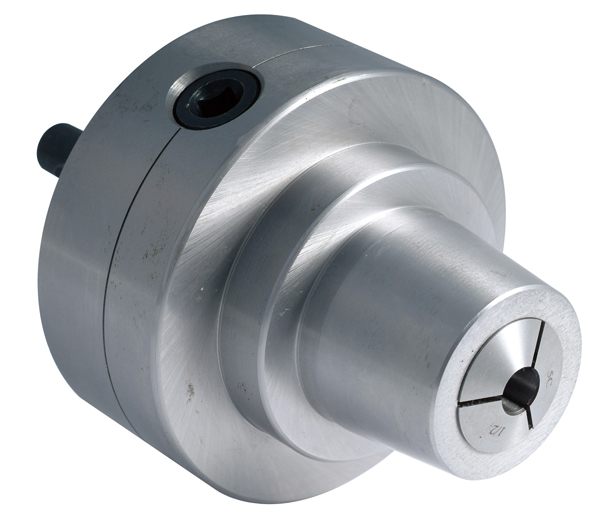

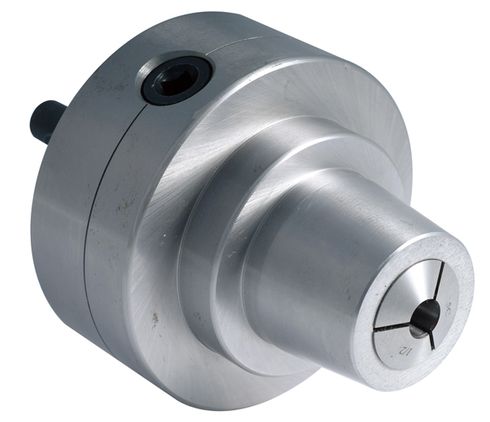

5C 5 INCH COLLET CHUCK D1-6
Product Description
Features:
Used for turning facing boring grinding and milling on center lathes and grinding machines.
Key-operated scroll provides uniform distortion-free clamping of work pieces and low collet exchange times.
Designed for use with 5C collets.
Chuck wrench is included.
T.I.R. is 0.0006"
Collet capacity is 1/16-1-1/8"
Maximum RPM is 6,000
Spindle: D1-6
Chuck Size: 5"
Collet capacity: 1/16-1-1/8"
Weight Approx. 13 lbs
