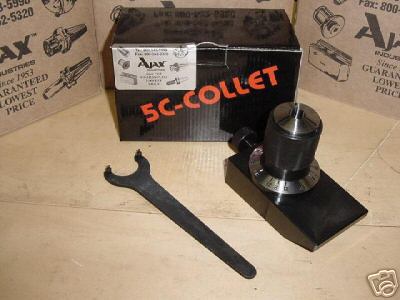

5C Collet Chuck Angle End Mill Grinding Fixture NEW
This fixture takes 5C Collets for grinding end mills 1/16" ~ 1-1/8"
Shell mills can easily be held with straight shank arbors.
Solid negative ball stops with 15 degree spacing fast & easy set-ups.
Can be used for grinding 2-3-4-6-8 and 12 flute end mills.
Clearance & relief angles are built into the base.
Solid 2-1/2" x 4-1/2" base bottom ground for sure contact.
Black oxide finish.
5C Collet not included
