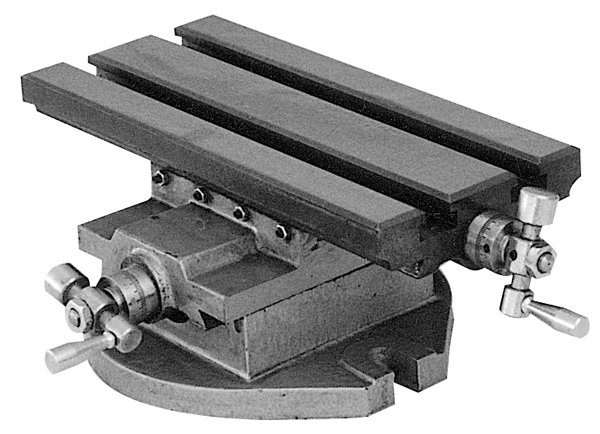

5-1/2 INCH X12 INCH COMPOUND SLIDE TABLE
Product Description
Features
•A heavy, rugged slide used in positioning, milling, drilling, microscope viewing and staging.
•Adjustable bases for heavy loads, small jig boring, precision cut-off.
•T-slot Width: 5/8"
Product Specifications
Table
5-1/2 x 12" T-slots on 2-1/2" Centers
Height
4-1/2"
Travel
8" Longitudinal 5" Transverse
Base
8 x 9" oval with U slots for up to 5/8" bolt on 7-3/4" to 8-1/2" bolt circle
Vise Capacity
Max. moving 9-3/4"
Wt.
40 lbs
