This is the world's first vise stop with the CNC machinist in mind. Its super low profile design stays completely below the top surface of the vise which means it will not interfere with cutting tool paths.
Whether you are making 10 parts or 10,000 parts the ultra rigid Stop will not move once you lock it down.
It is an ideal datum surface to locate parts. The Vise Stop is extremely versatile allowing the hardened steel stop rod to be quickly positioned in any location needed.
Low profile design stays below the top surface of vise jaws for cutter clearance
Versatile design allows the 1/4" hardened stop rod to be quickly and accurately positioned
Two sets of mounting holes for added versatility

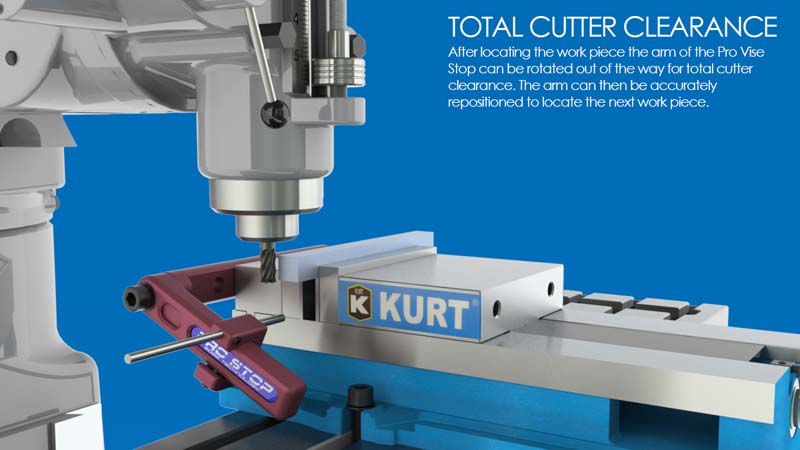

Lever arm can be rotated out of the way for cutter
Clearance and accurately relocated for repeat setup
Locate long stock with the included stop rod collar
Non-marring 1/4"-20 nylon tip set screw used to secure stop rod mount without damage to lever arm
Non-marring 1/4"-20 flat point set screw used to secure stop rod without damage
Body made from red anodized 6061-T6 aluminum
