8" 1.5 mm X 60 2.36 HIGH STEEL Chuck Jaws for B208 Kitagawa SET 3900-5660

8"  1.5 mm X 60  2.36 HIGH  STEEL Chuck Jaws  for B208 Kitagawa SET 3900-5660
Item# 3900-5660
$66.00
Availability: In Stock

Product Description

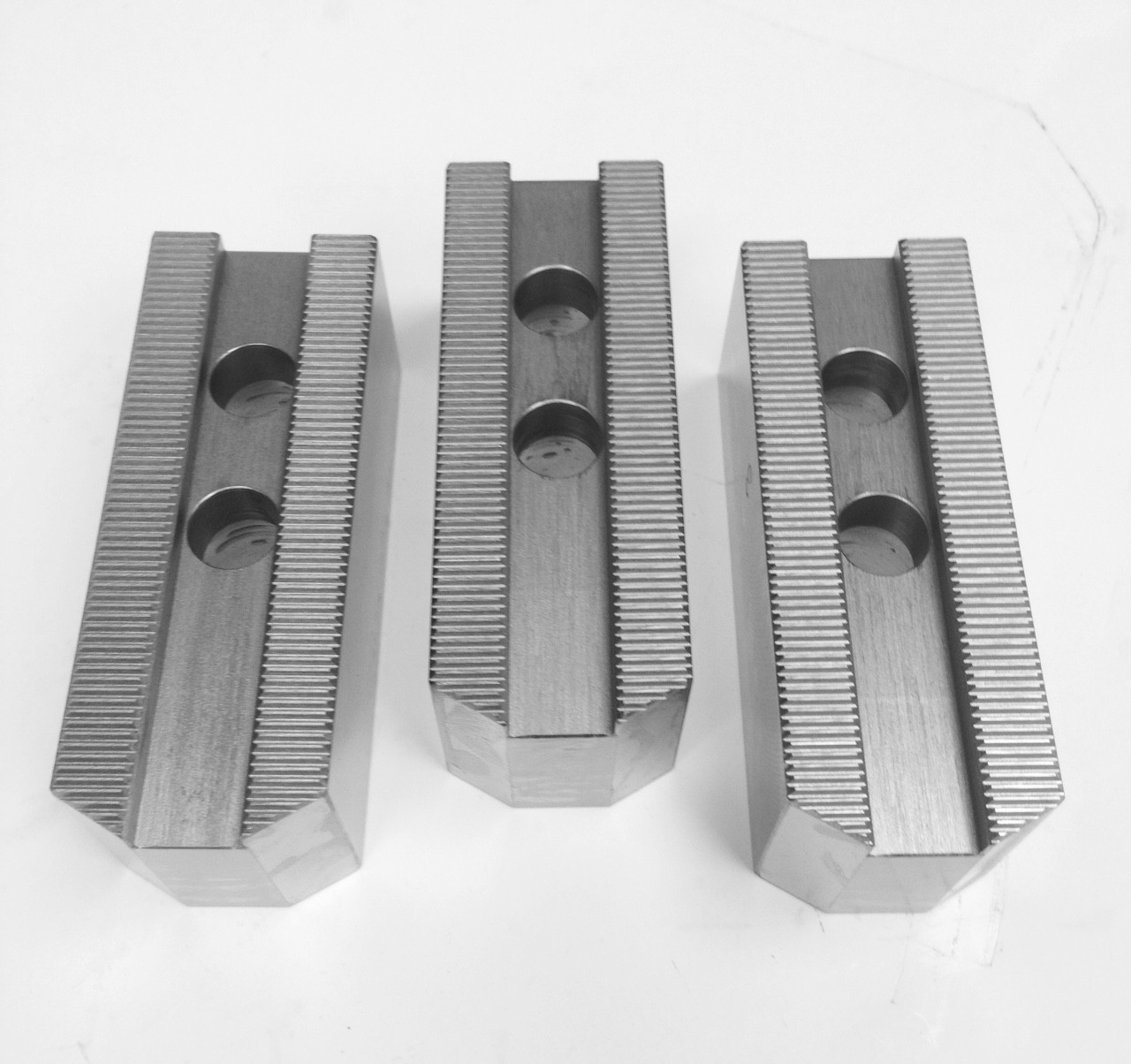

8"  1.5 mm X 60  2.36 HIGH  STEEL Chuck Jaws  for B208 Kitagawa SET 3900-5660
38" 1.5 mm X 60 Degree Serrated 2.36 HIGH STEEL Soft Chuck Jaws for B208 Kitagawa Strong SET 3900-5660



FOR USE ON: Kitagawa, Samchully, Strong, MMK, SMW Autoblok, Howa & Hitachi-Seiki Chucks

STEEL

Features

•Extra-height jaws are suitable for longer workpiece, such as 4" length workpiece will need jaws with over 3" height which will increase the acuracy and stability of production process.

•Supplies maximum concentricity on finish turning operations.

•Price is for a set of 3 jaws.

•Jaws can be hardened.

•Can be bored or turned to fit workpiece.

Product Specifications



Chuck Size 8"

CRITICAL DIMENSIONS - Groove Width D 0.551 (14mm)

CRITICAL DIMENSIONS - Screw Size E 1/2 (M12)

CRITICAL DIMENSIONS - Hole Space F 0.984 (25mm)

CRITICAL DIMENSIONS - Hole to Front H 1.811

Jaw Width C 1.38

Jaw Length A 3.74

Jaw Height B 2.36 (60mm)

Weight 8.5
