Description

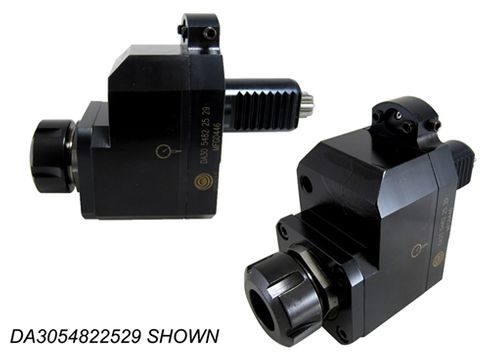

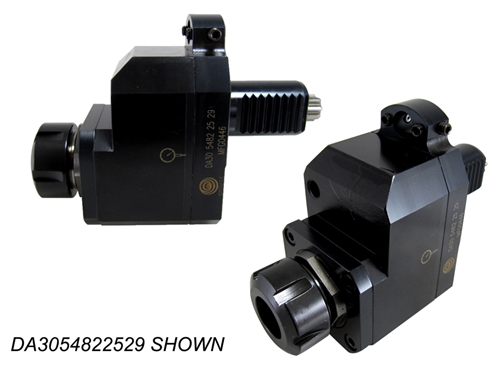

A17 Axial 5482 D/M Hd Offset w/ Collet Chk (D=40, ER32)

A17 Axial Drilling & Milling Head Offset w/ collet Chuck

Coupling to DIN5482 (Sauter Type)

Model# with "K": Internal Coolant (IC), "/2": Double

Torque (DT); "*2": Double Speed (DS)



Main Features

To be used for cutter arbor according to DIN 6499

External coolant supply



Specifications

Part Number :DA4054823250

Ref# DA40-5482-OFF

D DIN69880 40

X Capacity 2-20/ER32

S 50

Max rpm 4000

i 1:1

A 113

B 50

C 80

P DIN5482 B17X14
