A27 VDI Live Toolholder Axial MT Brauffaldi Offset Head w/ Collet Chuck 50mm ER40 DA50MT4065

A27 VDI Live Toolholder Axial MT Brauffaldi Offset Head w/ Collet Chuck 50mm ER40 DA50MT4065
Item# DA50MT4065
$3,149.00
Availability: In Stock

Product Description

A27 VDI Live Toolholder Axial MT Brauffaldi Offset Head w/ Collet Chuck 50mm ER40 DA50MT4065
A27 VDI Live Toolholder Axial MT Brauffaldi Offset Head w/ Collet Chuck 50mm ER40 DA50MT4065







AJAX INDUSTRIES, Your one stop SHOP for VDI LIVE TOOLING, Lathe Chucks and Jaws. Call one of our VDI Tooling Technicians Today. We Welcome the Opportunity to Quote and Help in selection of the proper VDI Static and Rotating Driven Live Tools to fit your CNC Turning, Milling, Drilling and Boring applications. Sauter, Duplomatic, Brauffaldi, Japanese, BMS, HAAS Tools and More for Mazak, Okuma, Haas, Daewoo, Mori Sieki, Doosan, Nakamura, Hwacheon ect... Put WORKHOLDING to work for YOU!!!

Ajaxtoolsupply.com GUARANTEED LOWEST PRICE!





Ajax Industries Sales and Service 1 (800) 543-5998













Description

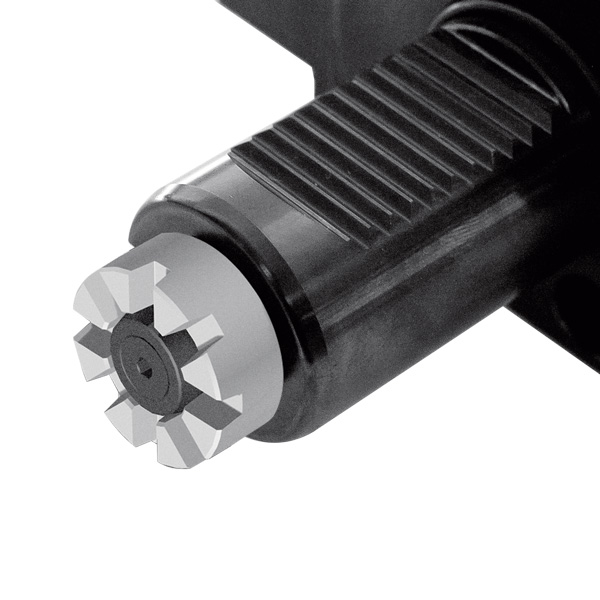

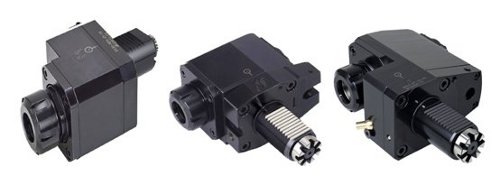

A27 Axial MT D/M Hd Offset w/ Collet Chk (D=50, ER40)

A27 Axial Drilling & Milling Head Offset w/ collet Chuck

Spur Coupling-MT (Brauffaldi Type)

Model# with "K": Internal Coolant (IC)



Main Features

To be used for cutter arbor according to DIN 6499

External coolant supply



Specifications

Part Number :DA50MT4065

Ref# DA50-MT-OFF

D DIN69880 50

X Capacity 3-26/ER40

S 63

Max rpm 3000

i 1:1

A 124

B 65

C 86

Old# A950M1
