Accu-Stop 12" Kitagawa B212 Chuck Stop AS-4000LB

Accu-Stop 12" Kitagawa B212 Chuck Stop AS-4000LB
Item# AS4000LB
$979.00
Availability: In Stock

Product Description

The Accu-Stop is a precision spindle stop for CNC lathes that provides a solid, precise stopping surface. Allowing you to stop parts anywhere from outside the chuck’s bore to nearly the entire length of the draw tube.

The Accu-Stop is made of low-carbon steel coated with zinc oxide for durability. The stop bolts to the front of the chuck, allowing the work piece and the stop to turn together to eliminate friction, gouging, and damage to the work piece.

Ensures accuracy and repeatability to .0005″ or better.

Made In The U.S.A



12″ Accu-Stop Assembly (Small Bore; 18″ of stopping capability)

12″ Accu-Stop Assembly (Large Bore; 21″ of stopping capability)

Length adjustable by adding or removing tube section and adjusting rod. EXTRA SECTIONS AVAILABLE



ACCU STOP ASSEMBLY INCLUDES:

Face Plate, Sub Face Plate, Three

Extension Tubes, End Cap, Lock Nut

And Threaded Adjustment Rod

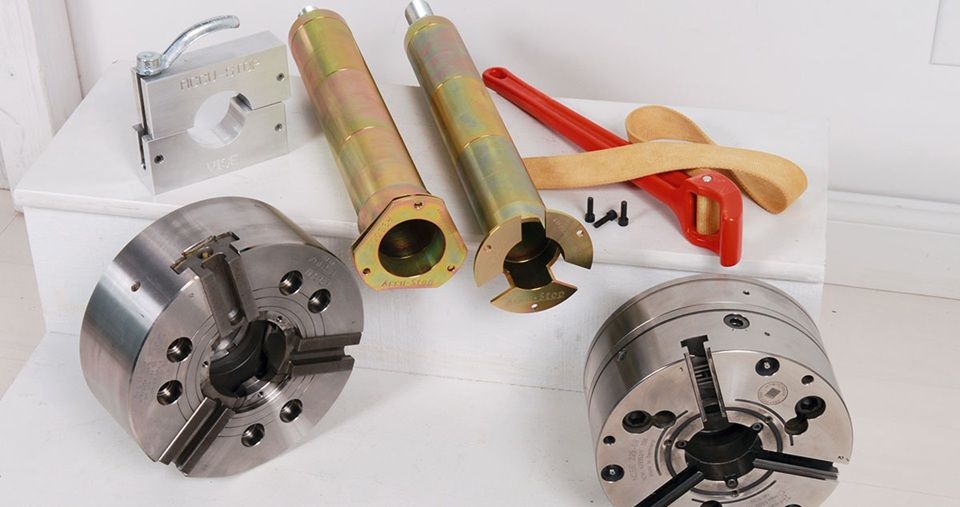

DELUXE PACKAGE INCLUDES:

Complete Accu Stop Assembly

Special Vise & Strap Wrench



SPECIFY

1. Make/Model of lathe

2. Date manufactured

3. Make/Model of chuck

4. Inside diameter of the draw tube.



OPTIONS

12″ Accu-Stop Assembly (Small Bore; 18″ of stopping capability)

12″ Accu-Stop Assembly (Large Bore; 21″ of stopping capability)

Deluxe Package Accu Stop with Vise & Wrench (under 3” dia drawtube) AS-P4000SB

Deluxe Package Accu Stop with Vise & Wrench (over 3” dia drawtube) AS-P4000LB

Extra Tube (6” Long) AS-4003SB

Tubing stop option if machining tube AS-TSO4000
