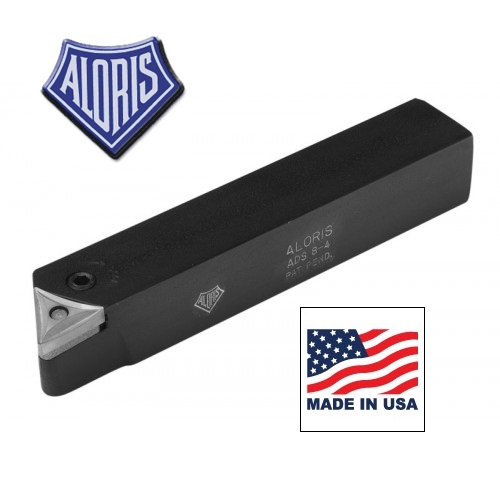

A unique locking device exerts a two-way force on the carbide insert: downward and tight against shoulder to assure rigid, positive seating. Designed to accept standard inserts. Straight style right hand. Also available in left hand and 30° side cutting edge versions.

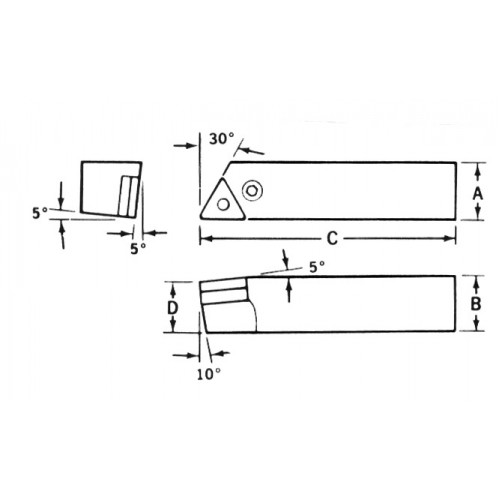

Dimensions (see image) A: 11/4"; B: 7"; C: 41/2"; D: 15/32"
Insert Size: I.C.: 5/8"; thickness: 1/4"
Carbide Seat ST-3
Hex Lock Pin LP-3
Lock Screw LS-3
