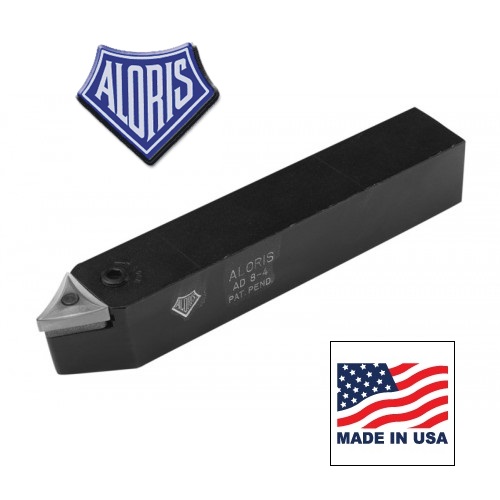

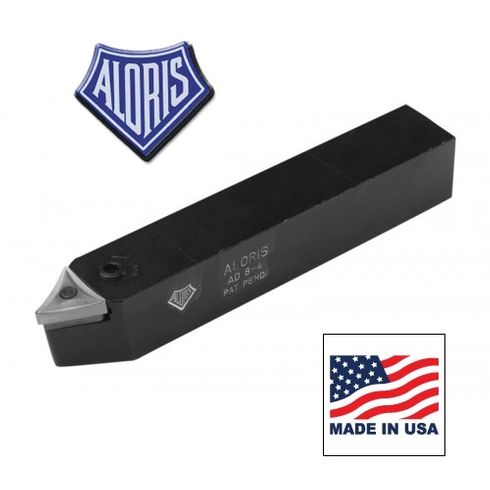

Aloris Double-Lock Tool Holder AD5-3

A unique locking device exerts a two-way force on the carbide insert: downward and tight against shoulder to assure rigid, positive seating. Designed to accept standard inserts. Also available in right and left hand versions.

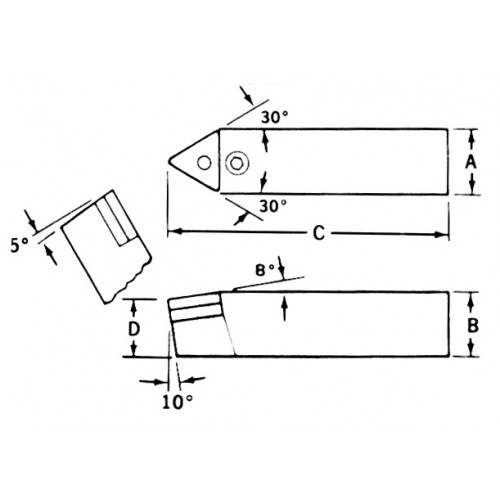

Dimensions (see image) A: 5/8"; B: 5/8"; C: 41/2"; D: 9/16"

Insert Size: I.C.: 3/8"; thickness: 1/8"

Replacement Parts: Carbide Seat ST-1 Hex Lock Pin LP-1 Lock Screw LS-1
