ATLAS 10" Easy-Set Self-Centering 3 Jaw Manual Lathe Chuck EZ103

ATLAS 10" Easy-Set Self-Centering 3 Jaw Manual Lathe Chuck EZ103
Item# at10ease3jaw
$949.00
Availability: In Stock

Product Description

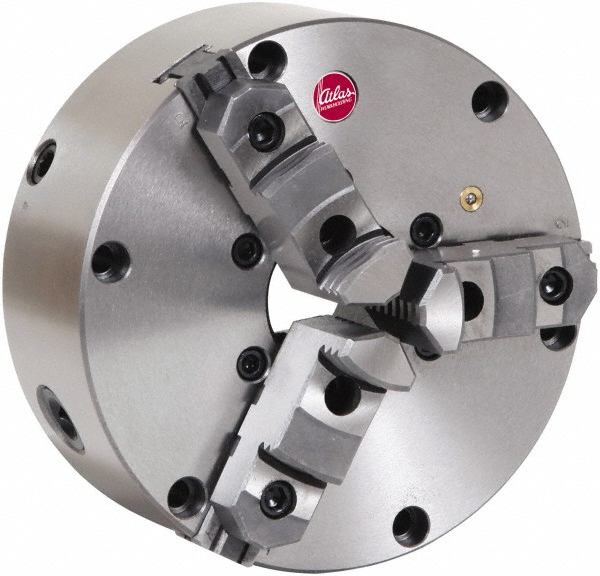

ATLAS 10" Easy-Set Self-Centering 3 Jaw Manual Lathe Chuck EZ103
Easy-Set Self-Centering 3 & 6 Jaw Universal Chucks Low Cost 3 & 6 Jaw Chucks

Direct Replacement for the Buck Adjust-Tru Early Design

High value, Lower cost

One-year warranty

Precision manufactured for adapter plate mounting utilizes the same mounting plate as the PBA SETRITE and other popular adjustable universal chucks

.0005 repeatability on duplicate parts

4 adjusting screws

Chuck Sizes 6", 8", 10", 12" and 15"

Hardened scroll

Hardened pinion

Two-piece tongue and groove jaws

Semi-steel body



Dimensional Data for Series Adapter Mounting Self-Centering Chucks





Chuck Size 10"

A 10.0"

B* 6.375"

C 2.860"

D 3.40"

E 2.58"

F 0.81"

G1 -

G2 4.38"

H 11.0"

K 7/16"

Gripping Capacity

Min.** 15/32"

Max. 8"

Maximum RPM 2700



* Tolerance - .003/+.002 **6-Jaw Chuck minimum grip

1. Bolt circle on 6" and 8" chucks are outside the pilot recess "B" as shown.

Bolt circle on 10", 12" and 15" Dia. chucks are inside "B" dimension.



Mounting Plates For Easy-Set 3-Jaw and 6-Jaw Chucks

Ajaxtoolsupply.com Sales and Service 1(800)543-5998 offers a full line of Atlas Workholding Mounting Plates type "D", "A", "L" and threaded plates for the Easy-Set Chucks.

Our Mounting Plates are interchangeable with other popular adjustable universal style Chucks.

Mounting plates are precision machined to suit the spindle nose of your machine.

For maximum accuracy of mounting plates, mount plate on machine spindle nose, place a dial indicator on the chuck side face of the adapter close to the mounting holes, rotate the adapter and if the total indicator reading (TIR) exceeds .0005" take a light truing cut across the face of the mounting plate.
