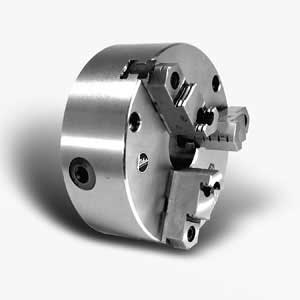

![Atlas 8" Self Centering 3 Jaw Universal Manual Lathe Chuck Plain Back 0834-2000 Atlas 8" Self Centering 3 Jaw Universal Manual Lathe Chuck Plain Back 0834-2000](https://s.turbifycdn.com/aah/yhst-46537691064911/atlas-8-self-centering-3-jaw-universal-iron-body-chucks-plain-back-55.png)
![Atlas 8" Self Centering 3 Jaw Universal Manual Lathe Chuck Plain Back 0834-2000 Atlas 8" Self Centering 3 Jaw Universal Manual Lathe Chuck Plain Back 0834-2000](https://s.turbifycdn.com/aah/yhst-46537691064911/atlas-8-self-centering-3-jaw-universal-iron-body-chucks-plain-back-57.png)
Product Description
•High value
•One year warranty
•Standard chuck sizes 5" thru 25"
•Maximum .003" TIR using nominating pinion - thru 12"
•.001" repeatability using nominating pinion - thru 12"
•Two-piece American Standard tongue and groove jaws
•Hardened scroll
•Three hardened pinions
•Semi steel bodies
Dimensions for Universal Flatback Mounting Chucks with Two-piece Jaws (in/mm)
Chuck Size 8"/200
B1 7.87"/200
B3 6.30"/160
B4 2.56"/65
B5 .197"/5
B6 6.93"/176
B7 (6) M-10
B9 5.00"/127
B10 2.05"/52
B15 2.95"/75
Max RPM 2000
•One year warranty
•Standard chuck sizes 5" thru 25"
•Maximum .003" TIR using nominating pinion - thru 12"
•.001" repeatability using nominating pinion - thru 12"
•Two-piece American Standard tongue and groove jaws
•Hardened scroll
•Three hardened pinions
•Semi steel bodies
Dimensions for Universal Flatback Mounting Chucks with Two-piece Jaws (in/mm)
Chuck Size 8"/200
B1 7.87"/200
B3 6.30"/160
B4 2.56"/65
B5 .197"/5
B6 6.93"/176
B7 (6) M-10
B9 5.00"/127
B10 2.05"/52
B15 2.95"/75
Max RPM 2000
