Product Description

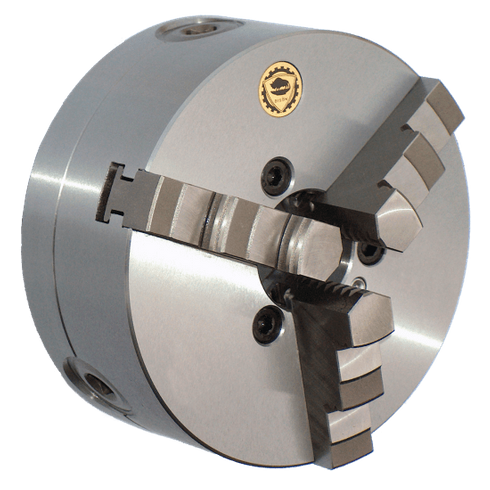

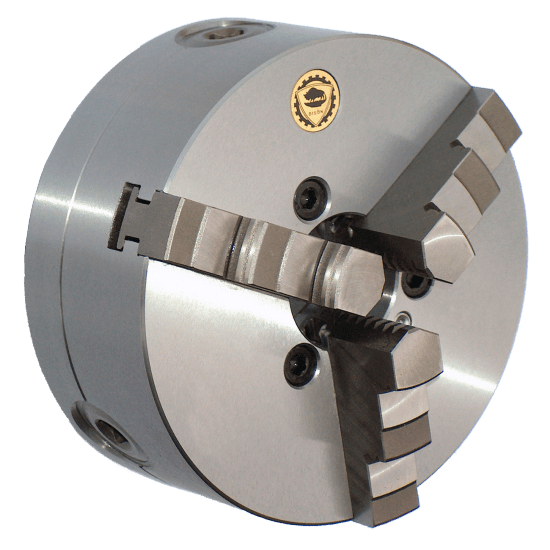

BISON-BIAL Precision Forged Steel
3-Jaw Scroll Chuck with Two Sets of Hard Solid Jaws
Each chuck is provided with: • 1 Set of hard solid ID jaws • 1 Set of hard solid OD jaws • 1 Chuck wrench • 1 Set of mounting bolts • 1 Hex key
TECHNICAL DATA Chuck Diameter D in 5
Chuck Body Forged Steel Hole Diameter d in 1.3976 Max Speed RPM 5500 Weight lb 11 F in 4.252 E in 3.7402 C in 0.1575 H in 2.422 h in 1.575 Adapter Mounting Bolts, Thread M M8x1.25 Adapter Mounting Bolts, L 0.98 Adapter Mounting Bolts, Qty 3
Clamping Range d1 (min-max) .118 - 1.97 Clamping Range d2 (min-max) 1.54 - 3.27 Clamping Range d3 (min-max) 3.15 - 4.92 Clamping Range d4 (min-max) 1.34 - 2.91 Clamping Range d5 (min-max) 2.83 - 4.53
Each chuck is provided with: • 1 Set of hard solid ID jaws • 1 Set of hard solid OD jaws • 1 Chuck wrench • 1 Set of mounting bolts • 1 Hex key
TECHNICAL DATA Chuck Diameter D in 5
Chuck Body Forged Steel Hole Diameter d in 1.3976 Max Speed RPM 5500 Weight lb 11 F in 4.252 E in 3.7402 C in 0.1575 H in 2.422 h in 1.575 Adapter Mounting Bolts, Thread M M8x1.25 Adapter Mounting Bolts, L 0.98 Adapter Mounting Bolts, Qty 3
Clamping Range d1 (min-max) .118 - 1.97 Clamping Range d2 (min-max) 1.54 - 3.27 Clamping Range d3 (min-max) 3.15 - 4.92 Clamping Range d4 (min-max) 1.34 - 2.91 Clamping Range d5 (min-max) 2.83 - 4.53
