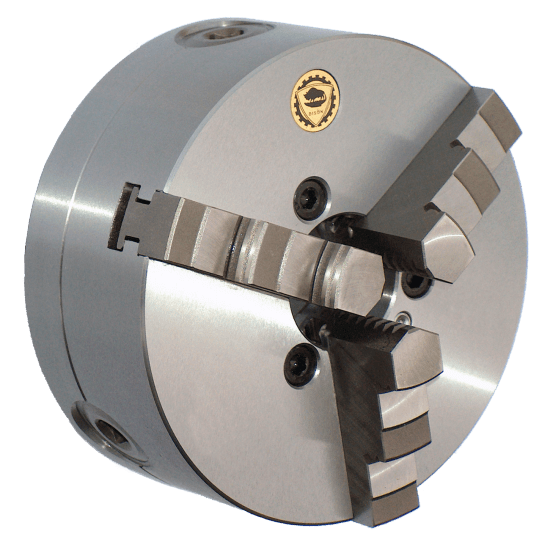

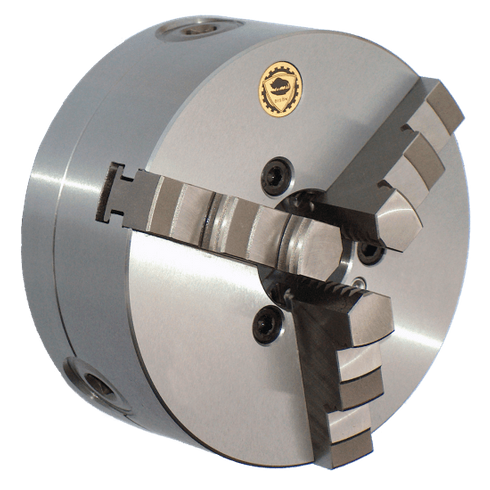

BISON 3-Jaw (Solid) Scroll Chuck Forged Steel Body Plain Back 6 inch 7-829-0600

BISON 3-Jaw (Solid) Scroll Chuck Forged Steel Body Plain Back 6 inch 7-829-0600
Item# 7-829-0600
$869.94
Availability: In Stock

Product Description

BISON-BIAL Precision Forged Steel

3-Jaw Scroll Chuck with Two Sets of Hard Solid Jaws



Each chuck is provided with:

1 Set of hard solid ID jaws

1 Set of hard solid OD jaws

1 Chuck wrench

1 Set of mounting bolts

1 Hex key

TECHNICAL DATA

Chuck Diameter D in 6

Chuck Body Forged Steel

Hole Diameter d in 1.6535

Max Speed RPM 4500

Weight lb 22

F in 5.5118

E in 4.9213

C in 0.1575

H in 2.756

h in 1.693

Adapter Mounting Bolts, Thread M M10x1.5

Adapter Mounting Bolts, L 0.98

Adapter Mounting Bolts, Qty 6

Clamping Range d1 (min-max) .118 - 2.52

Clamping Range d2 (min-max) 1.97 - 4.21

Clamping Range d3 (min-max) 3.86 - 6.30

Clamping Range d4 (min-max) 1.65 - 3.94

Clamping Range d5 (min-max) 3.70 - 6.06
