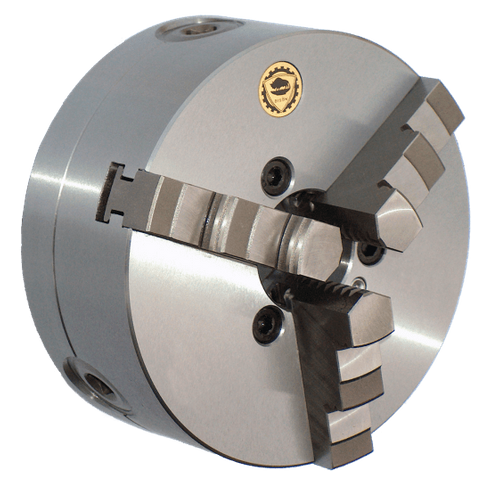

BISON 3-Jaw (Solid) Scroll Chuck Forged Steel Body Plain Back 12 inch 7-829-1200

BISON 3-Jaw (Solid) Scroll Chuck Forged Steel Body Plain Back 12 inch 7-829-1200
Item# 7-829-1200
$1,799.94
Availability: In Stock

Product Description

BISON-BIAL Precision Forged Steel

3-Jaw Scroll Chuck with Two Sets of Hard Solid Jaws

Each chuck is provided with:

1 Set of hard solid ID jaws

1 Set of hard solid OD jaws

1 Chuck wrench

1 Set of mounting bolts

1 Hex key

TECHNICAL DATA

Chuck Diameter D in 12-1/2

Chuck Body Forged Steel

Hole Diameter d in 4.0551

Max Speed RPM 2800

Weight lb 110

F in 11.2598

E in 10.2362

C in 0.1969

H in 3.937

h in 2.244

Adapter Mounting Bolts, Thread M M16x2

Adapter Mounting Bolts, L 1.18

Adapter Mounting Bolts, Qty 6

Clamping Range d1 (min-max) .394 - 5.16

Clamping Range d2 (min-max) 3.54 - 8.46

Clamping Range d3 (min-max) 7.48 - 12.40

Clamping Range d4 (min-max) 3.07 - 7.87

Clamping Range d5 (min-max) 6.77 - 11.77
