Bison Live Center MT#3 Centers Lathe Interchangeable

Home > Workholding > CENTERS > Bison Centers > Bison Live Center MT#3 Centers Lathe Interchangeable

Product Description

Set Code No. 7-570-003

Live Center w/Intrchg Ins,Set, MT3 Shank

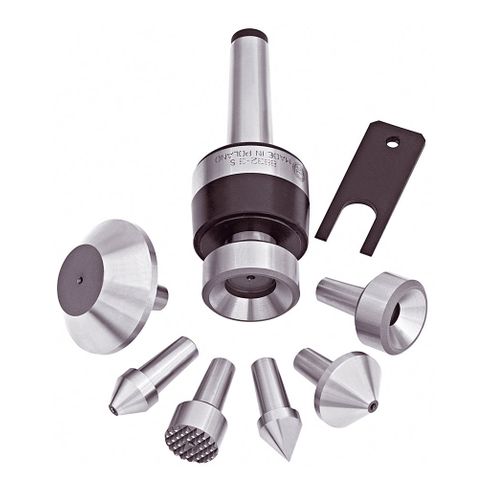

Live Center with Interchangeable Inserts Set with MT3 Shank
TECHNICAL DATA:

Item Live Center w Interchangeable Inserts

Type Set Morse Taper 3 Center Body 7-570-103
Insert 60 D Extended Male Point 7-570-203

Insert 90 D Small Bull Nose Point 7-570-303

Insert 90 D Large Bull Nose Point 7-570-403

Insert 90 D Standard Female Point 7-570-503

Insert 90 D Large Female Point 7-570-603

Insert 60 D Standard Male Point 7-570-703

Insert Flat Knurled Point 7-570-803

Insert Extractor 7-570-903
