Product Description
Set Code No. 7-570-005
Item # 7-570-005P

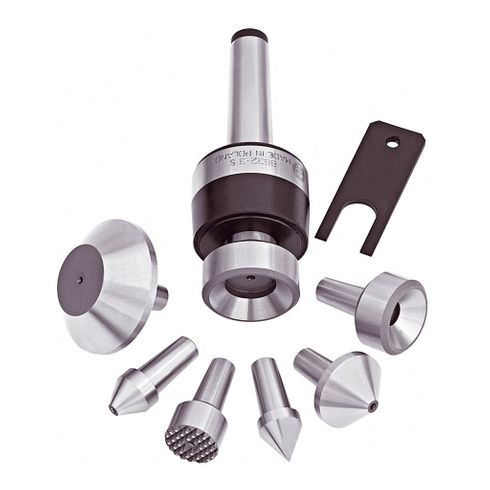

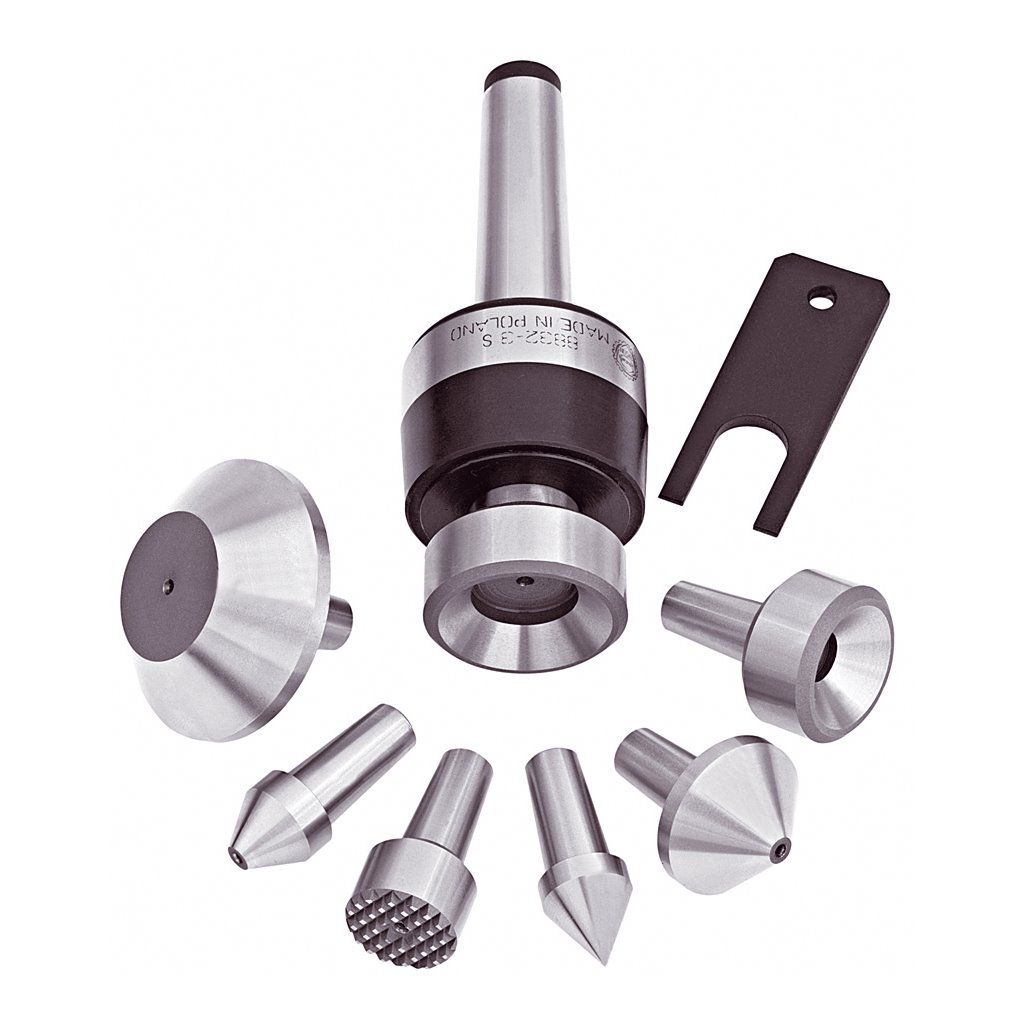

Live Center w/Intrchg Ins,Set, MT5 Shank
Live Center with Interchangeable Inserts Set with MT5 Shank
TECHNICAL DATA:
Item Live Center w Interchangeable Inserts
Type Set
Morse Taper 5
Center Body 7-570-105
Insert 60 D Extended Male Point 7-570-205
Insert 90 D Small Bull Nose Point 7-570-305
Insert 90 D Large Bull Nose Point 7-570-405
Insert 90 D Standard Female Point 7-570-505
Insert 60 D Standard Male Point 7-570-705
Insert Flat Knurled Point 7-570-805
Insert Extractor 7-570-905
