Product Description
Pick Round Size At Checkout

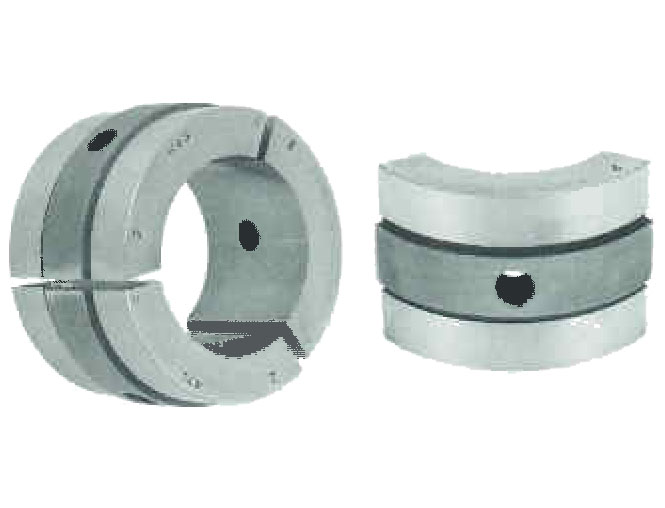

Turret Lathe Pads are commonly used with Collet Chucks and collet pad top jaws
Heat Treated and Ground to Size
Turret Lathe Pads can be purchased in a variety of shapes, sizes and materials
Specifications
Machine Model WARNER & SWASEY #5, 1A
Machine Size 2 1/2 in
Round Collet Pad Capacity 2 1/2 in
Hexagon Collet Pad Capacity 2 3/16 in
Square Collet Pad Capacity 1 3/4 in
Master Collet Number 471-1001
Master Pad Number 471-1002 Rd. 471-1003 Hx. 471-1004 Sq.
