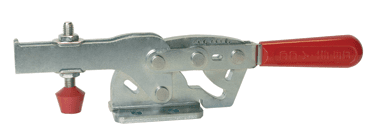

De-Sta-Co 2013U Horizontal Hold Down U-Bar Destaco Toggle Clamp

De-Sta-Co 2013U Horizontal Hold Down U-Bar Destaco Toggle Clamp
Item# 2013U
Regular price: $34.49
Sale price: $27.94
Availability: In Stock

Product Description

De-Sta-Co 2013U Horizontal Hold Down U-Bar Destaco Toggle Clamp


De-Sta-Co 2013U Horizontal Hold Down U-Bar Destaco Toggle Clamp

New generation toggle clamp with over 2 times the capacity of our legacy models

Increased handle clearance reduces pinch points.

Longer clamp arm

Spindle contacts workpiece vertically

Ergo handle



Maxmum Holding Capacity (N) 1,310

Holding Capacity (lbsf) 295

Clamp Arm Length (mm) 41.9

Clamp Arm Length (in) 1.650

Height Under Clamp Arm (mm) 19.1

Height Under Clamp Arm (in) 0.750

Maxmum Holding Capacity (N) 1,310

Clamp Bar Opening (+10) (degrees) 71

Handle Opening (+10) 58

Standard Material Steel

Base Mounting Style flanged

Clamp Arm Style u-bar

Handle Horizonal



SPECIFICATIONS

Fits Spindle Diameter #10-32

Height Under Clamp Arm .75

Mount Diameter .17

Mounting Length .53

Mounting Width .70

Overall Height 1.27

Overall Length 5.88
