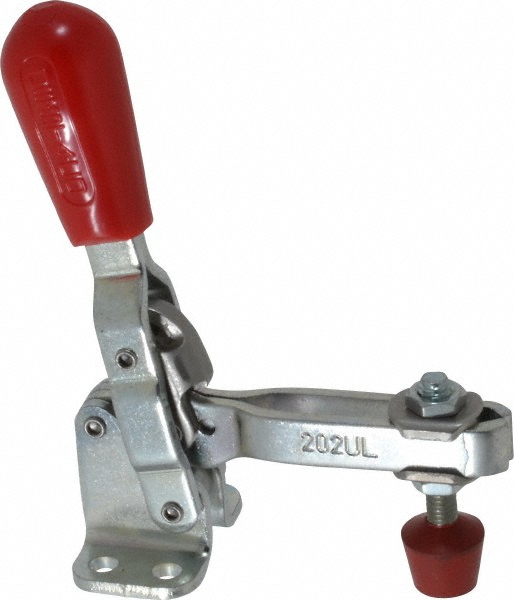

De-Sta-Co 202-UL Vertical Hold Down Destaco Toggle Clamp

De-Sta-Co 202-UL Vertical Hold Down Destaco Toggle Clamp
Item# 202-UL
Regular price: $24.45
Sale price: $19.86
Availability: In Stock

Product Description

De-Sta-Co 202-UL Vertical Hold Down Destaco Toggle Clamp


De-Sta-Co 202-UL Vertical Hold Down Destaco Toggle Clamp

One of the most popular series in our line of vertical hold-down clamps.

Ideal for use in checking fixtures.

Supplied with neoprene spindle.

Ergonomic handle grip



Maxmum Holding Capacity (N) 890

Holding Capacity (lbsf) 200

Clamp Arm Length (mm) 38.1

Clamp Arm Length (in) 1.500

Height Under Clamp Arm (mm) 23.4

Height Under Clamp Arm (in) 0.920

Maxmum Holding Capacity (N) 890

Clamp Bar Opening (+10°) (degrees) 105

Handle Opening (+10°) 65

Standard Material Steel

Base Mounting Style flanged

Clamp Arm Style open u-bar

Handle Vertical



SPECIFICATIONS

Base Width 1.56

Distance From Base to Clamp Bar 2.27

Mount Diameter .22

Mounting Length .50

Mounting Width 1.06

Overall Height 4.21

Overall Length 3.27

Spindle Assembly M6
