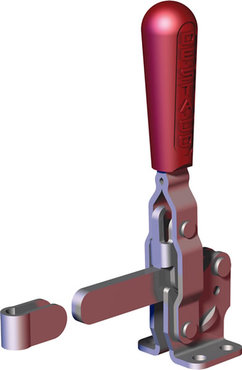

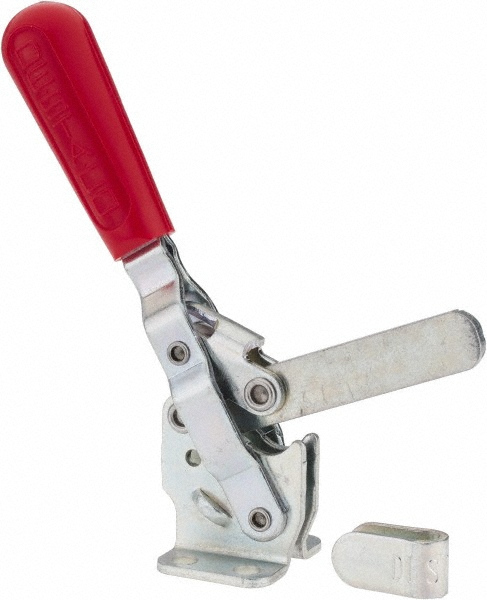

De-Sta-Co 207-S Vertical Hold Down Solid Bar Destaco Toggle Clamp

De-Sta-Co 207-S Vertical Hold Down Solid Bar Destaco Toggle Clamp
Item# 207-S
Regular price: $26.73
Sale price: $23.65
Availability: In Stock

Product Description

De-Sta-Co 207-S Vertical Hold Down Solid Bar Destaco Toggle Clamp


De-Sta-Co 207-S Vertical Hold Down Solid Bar Destaco Toggle Clamp



The world's most widely used toggle clamp.

Has the most features and options of any series in our toggle clamp line.

Supplied with neoprene spindle.

Ergonomic handle grip.



Maxmum Holding Capacity (N) 2,220

Holding Capacity (lbsf) 500

Clamp Arm Length (mm) 56.4

Clamp Arm Length (in) 3.790

Height Under Clamp Arm (mm) 32.0

Height Under Clamp Arm (in) 1.260

Maxmum Holding Capacity (N) 2,220

Clamp Bar Opening (+10°) (degrees) 99

Handle Opening (+10°) 57

Weight (kg) 0.31

Standard Material Steel



TECHNICAL SPECIFICATIONS

Bar Style Solid

Base Type Flanged

Base Width 1.75

Distance From Base to Clamp Bar 2.19

Mount Diameter .28

Mounting Length .75

Mounting Width 1.25

Overall Height 6.89

Overall Length 3.75

Spindle Assembly M8

Style Vertical Handle Hold Down
