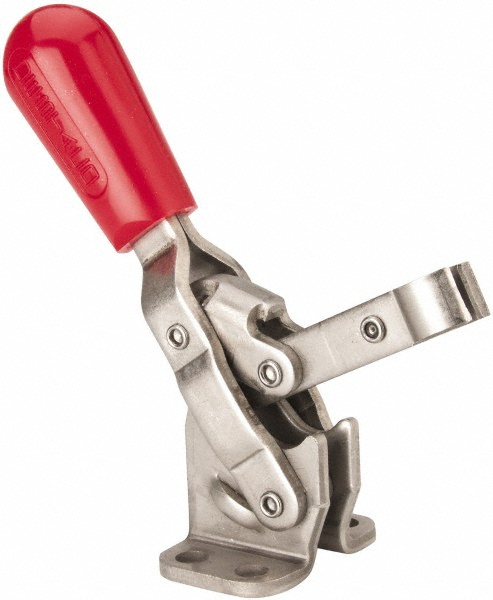

De-Sta-Co 202-SS Vertical Manual Hold Down Destaco Toggle Clamp

De-Sta-Co 202-SS Vertical Manual Hold Down Destaco Toggle Clamp
Item# 202-SS
Regular price: $54.49
Sale price: $46.94
Availability: In Stock

Product Description

De-Sta-Co 202-SS Vertical Manual Hold Down Destaco Toggle Clamp




De-Sta-Co 202-SS Vertical Manual Hold Down Destaco Toggle Clamp

One of the most popular series in our line of vertical hold-down clamps. Ideal for use in checking fixtures.

Stainless steel

Solid bar clamping arm supplied with stainless steel hex head spindle

Ergo handle



Maxmum Holding Capacity (N) 1,110

Holding Capacity (lbsf) 250

Clamp Arm Length (mm) 33.3

Clamp Arm Length (in) 1.310

Height Under Clamp Arm (mm) 23.6

Height Under Clamp Arm (in) 0.930

Maxmum Holding Capacity (N) 1,110

Clamp Bar Opening (+10°) (degrees) 105

Handle Opening (+10°) 65

Standard Material Stainless Steel

Base Mounting Style flanged

Clamp Arm Style solid bar

SPECIFICATIONS

Length Distance Between Mount Holes (Decimal Inch) 0.49

Width Distance Between Mount Holes (Decimal Inch) 1.0600

Overall Length (Decimal Inch) 2.3100

Overall Height (Decimal Inch) 4.3300

Base Length (Decimal Inch) 1.0000

Base Width (Decimal Inch) 1.5600

Finish/Coating Electro-Plated Zinc

Number of Mounting Holes 4

Mounting Hole Diameter (Decimal Inch) 0.2200

Front of Base To Tip Of Toggle Bar (Decimal Inch) 1.3100

Spindle Thread Size M6x1

Bar Width (Decimal Inch) 0.9200

Includes (2) Nuts; Hex Head Spindle
