Product Description

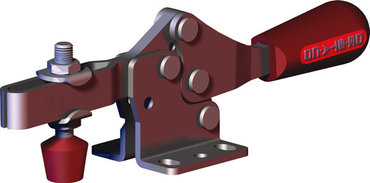

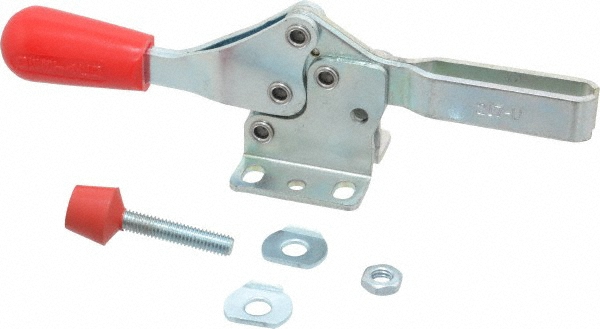

De-Sta-Co 217-U Horizontal Hold Down Destaco Toggle Clamp
Unique design gives greater hand clearance between the bar and handle. Models ending in "-L"" feature an open U-bar for attachments of arm extensions."
Clamp supplied with Ergo handle neoprene spindle
Low profile
Maxmum Holding Capacity (N) 900
Holding Capacity (lbsf) 200
Clamp Arm Length (mm) 58.7
Clamp Arm Length (in) 2.310
Height Under Clamp Arm (mm) 23.4
Height Under Clamp Arm (in) 0.920
Maxmum Holding Capacity (N) 900
Clamp Bar Opening (+10°) (degrees) 91
Handle Opening (+10°) 61
Standard Material Steel
Base Mounting Style flanged
Clamp Arm Style u-bar
Handle Horizonal
SPECIFICATIONS
Centerline Distance .12
Distance From Base to Mounting Hole .21
Fits Spindle Diameter 1/4
Mounting Length 1.03
Mounting Width 1.12
Overall Height 1.95
Overall Length 7.00
Spindle Assembly (202208-M) 6mm-1.00 x 44mm Flat Tip
