Product Description

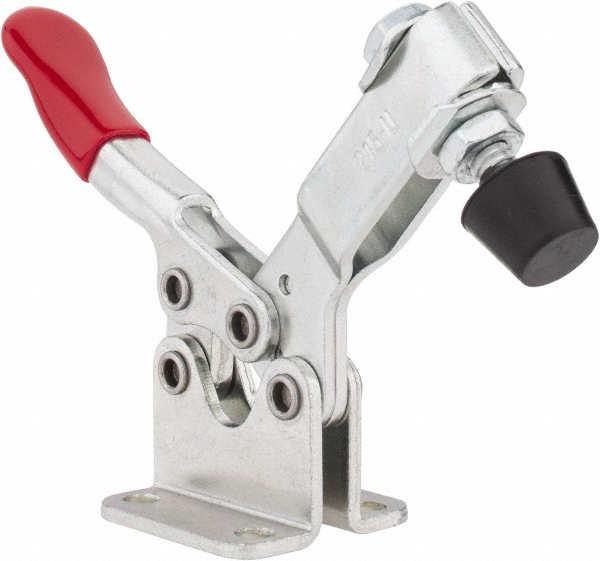

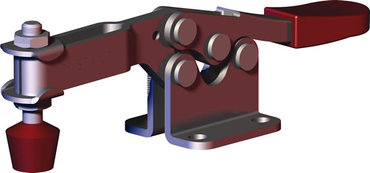

De-Sta-Co 215-U Horizontal Hold Down U-Shape Toggle Clamp

215-U
Horizontal Clamp
Used in drilling, testing, gluing and other processing applications.
Suitable for use in welding, fixtures, in gauge manufacturing as well as in the woodworking industry.
Minimum overhead clearance is required for this low profile clamp
Clamp supplied with neoprene Ergo handle spindle
Low profile
Maxmum Holding Capacity (N) 890
Holding Capacity (lbsf) 200
Clamp Arm Length (mm) 57.4
Clamp Arm Length (in) 2.260
Height Under Clamp Arm (mm) 25.4
Height Under Clamp Arm (in) 1.000
Maxmum Holding Capacity (N) 890
Clamp Bar Opening (+10°) (degrees) 87
Handle Opening (+10°) 78
Standard Material Steel
Toggle Lock Plus No
Handle Horizonal
SPECIFICATIONS
Bar Style U-Shape
Base Type Flanged
Distance From Base to Mounting Hole .19
Fits Spindle Diameter 1/4
Mounting Length 1.00
Mounting Width .88
Overall Height 1.53
Overall Length 5.50
Spindle Assembly (202208-M) 6mm-1.00 x 44mm Flat Tip
Style Horizontal Handle Hold Down
