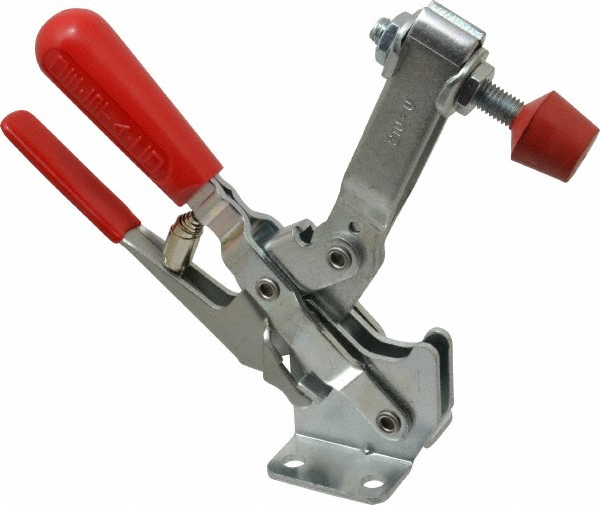

De-Sta-Co 210-UR Vertical with Release Lever Catch Destaco Toggle Clamp

De-Sta-Co 210-UR Vertical with Release Lever Catch Destaco Toggle Clamp
Item# 210-UR
Regular price: $89.94
Sale price: $79.43
Availability: In Stock

Product Description

De-Sta-Co 210-UR Vertical with Release Lever Catch Destaco Toggle Clamp


De-Sta-Co 210-UR Vertical with Release Lever Catch Destaco Toggle Clamp

Mid-range capacity. Ideal for use in a wide variety of applications.

Supplied with neoprene spindle

With Toggle Lock Plus

Ergonomic handle grip.



Maxmum Holding Capacity (N) 2,670

Holding Capacity (lbsf) 600

Clamp Arm Length (mm) 93.0

Clamp Arm Length (in) 3.650

Height Under Clamp Arm (mm) 42.7

Height Under Clamp Arm (in) 1.670

Maxmum Holding Capacity (N) 2,670

Clamp Bar Opening (+10) (degrees) 103

Handle Opening (+10) 58

Weight (kg) 0.73

Standard Material Steel



SPECIFICATIONS

Accessories 240208-M M10 x 1.50

Bar Style U-Shape

Base Type Flanged

Base Width 2.50

Distance From Base to Clamp Bar 3.66

Mount Diameter .33

Mounting Length 1.25

Mounting Width 1.75

Overall Height 8.15

Overall Length 6.72

Spindle Assembly M10
