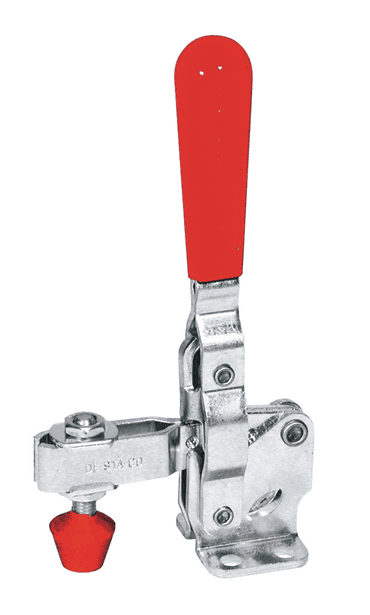

De-Sta-Co 247-U Vertical Hold Down U-Bar Destaco Toggle Clamp

De-Sta-Co 247-U Vertical Hold Down U-Bar Destaco Toggle Clamp
Item# 247-U
Regular price: $42.91
Sale price: $37.00
Availability: In Stock

Product Description

De-Sta-Co 247-U Vertical Hold Down U-Bar Destaco Toggle Clamp




De-Sta-Co 247-U Vertical Hold Down U-Bar Destaco Toggle Clamp

Heavy duty vertical hold down clamp offers bar guide feature for lateral stability

Hardened steel bushings

Larger bar guides for greater lateral stability

Supplied with neoprene spindle.

Ergonomic handle grip



Maxmum Holding Capacity (N) 4,400

Holding Capacity (lbsf) 1,000

Clamp Arm Length (mm) 123.7

Clamp Arm Length (in) 4.870

Height Under Clamp Arm (mm) 50.8

Height Under Clamp Arm (in) 2.000

Maxmum Holding Capacity (N) 4,400

Clamp Bar Opening (+10) (degrees) 120

Handle Opening (+10) 67

Standard Material Steel

Base Mounting Style flanged

Clamp Arm Style u-bar

Handle Vertical



SPECIFICATIONS

Base Width 2.53

Distance From Base to Clamp Bar 4.87

Mount Diameter .34

Mounting Length 1.25

Mounting Width 1.78

Overall Height 8.69

Overall Length 6.87

Spindle Assembly M12
