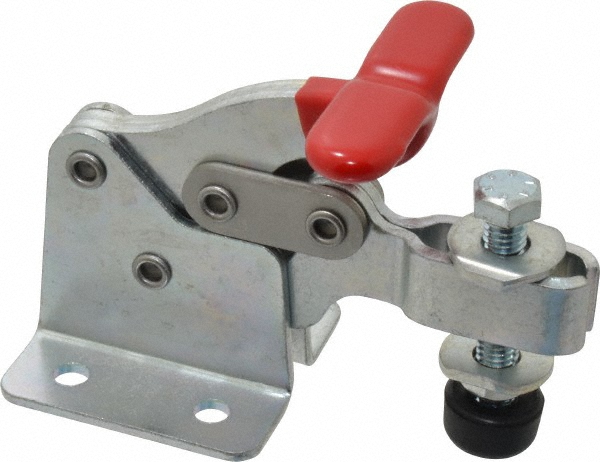

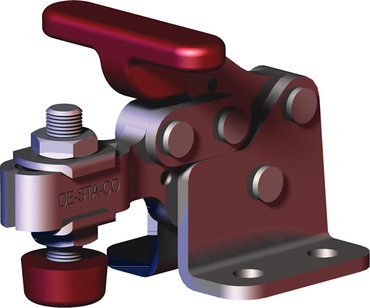

De-Sta-Co 307-U Horizontal Hold Down Destaco Toggle Clamp

De-Sta-Co 307-U Horizontal Hold Down Destaco Toggle Clamp
Item# 307-U
Regular price: $24.94
Sale price: $19.79
Availability: In Stock

Product Description

De-Sta-Co 307-U Horizontal Hold Down Destaco Toggle Clamp




De-Sta-Co 307-U Horizontal Hold Down Destaco Toggle Clamp

Low silhouette hold down clamp features a handle that can be operated from either side or from behind

Up to 150 lb. (670 N) capacity

Supplied with Ergo handle neoprene spindle

Stainless steel models available



Maxmum Holding Capacity (N) 1,560

Holding Capacity (lbsf) 350

Clamp Arm Length (mm) 48.0

Clamp Arm Length (in) 1.890

Height Under Clamp Arm (mm) 22.6

Height Under Clamp Arm (in) 0.890

Maxmum Holding Capacity (N) 1,560

Clamp Bar Opening (+10) (degrees) 92

Handle Opening (+10) 173

Standard Material Steel



SPECIFICATIONS

Bar Style U-Shape

Base Type Flanged

Distance From Base to Mounting Hole .40

Fits Spindle Diameter 5/16

Mounting Length .91

Mounting Width 1.14

Overall Height 2.36

Overall Length 3.61

Spindle Assembly (MA50-307208-M) 8mm-1.25 x 43mm Flat Tip
