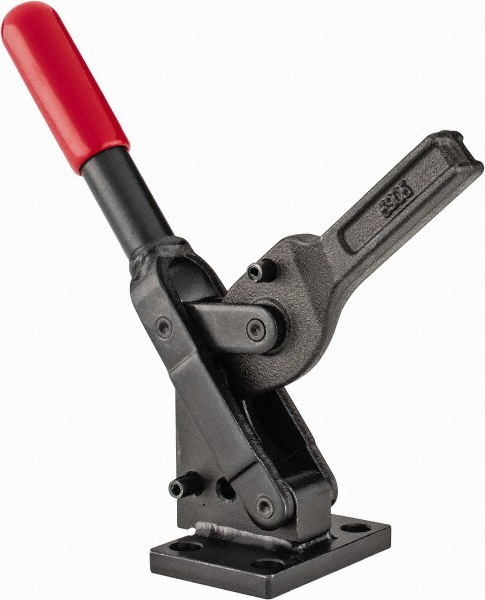

De-Sta-Co 5905 Vertical Hold Down Destaco Toggle Clamp

De-Sta-Co 5905 Vertical Hold Down Destaco Toggle Clamp
Item# 5905
Regular price: $79.99
Sale price: $68.74
Availability: In Stock

Product Description

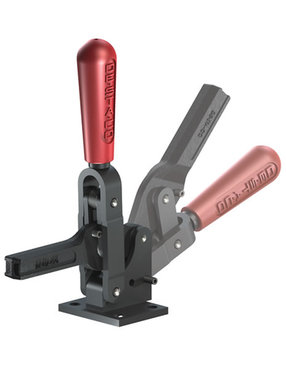

De-Sta-Co 5905 Vertical Hold Down Destaco Toggle Clamp




De-Sta-Co 5905 Vertical Hold Down Destaco Toggle Clamp

These heavy duty hold down clamps feature robust contruction that provides extended life and durability.

Solid clamping bars may be modified to suit application requirements.

High strength forged alloy steel clamping arm Hardened steel pivot pins and bushings for long life

Ergo handle

Black oxide finish



Maxmum Holding Capacity (N) 3,340

Holding Capacity (lbsf) 750

Opening Angle (deg) 135

Height Under Clamp Arm (mm) 38.1

Height Under Clamp Arm (in) 1.500

Maxmum Holding Capacity (N) 3,340

Clamp Bar Opening (+10°) (degrees) 135

Handle Opening (+10°) 70

Available Yes

Standard Material High-Strength Forged Steel

Toggle Lock Plus No

Accomodates Workpiece Variation No

Base Mounting Style flanged

Clamp Arm Style solid bar

Handle Vertical



SPECIFICATIONS

Base Length 1.51

Base Width 2.13

Clamp Arm Length 2.49

Distance From Base to Clamp Bar 1.27

Distance From Surface to Clamp Point 1.27

Height Under Clamp Arm 1.27

Mount Diameter .29

Mounting Length 1.00

Mounting Width 1.50

Overall Height 6.75

Overall Length 4.02

Overall Width 2.13

Width Between Mounting Base 1.50
