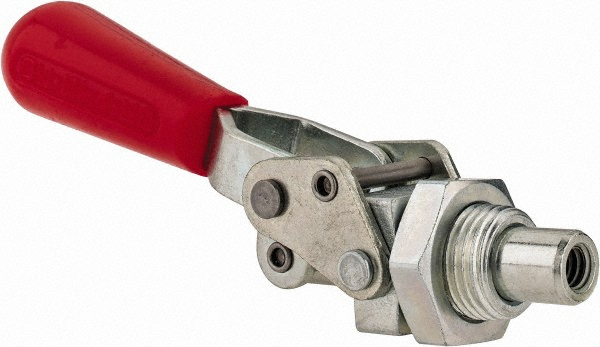

Destaco 602 Straight Line Action Clamp

Destaco 602 Straight Line Action Clamp
Item# 602
$19.49
Availability: In Stock

Product Description

Destaco 602 Straight Line Action Clamp


Destaco 602 Straight Line Action Clamp



Through-hole mounted straight line action clamp

Versatile and compact

Locks in both extended and retracted position

Ergonomic handle grip

Threaded Body Straight Line Action Clamp

Versatile and compact straight line action clamps

Threaded body for through hole mounting



SPECIFICATIONS

Bar Style Plunger

Base Type Flanged

Body Size 5/8-18

Body Thread Size 5/8-18

Body Width 1.03

Distance From Front Body to End Plunger 1.31

Distance From Surface to Plunger .88

Holding Capacity 200 lbs

Model No. 602

Overall Height 3.13

Overall Length 2.62

Overall Width 1.03

Plunger Diameter .37

Plunger Length .97

Plunger Length Extended .97

Plunger Travel .75
