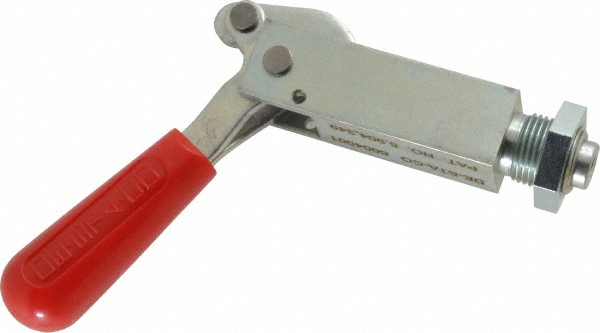

De-Sta-Co 6004 Straight Line Toggle Clamp
Product Description

De-Sta-Co 6004 Straight Line Toggle Clamp

Our newest through-hole mounted straight line clamp.
Has 50% greater capacity than model 604.
Solid body
Locks in both extended and retracted position
Available in metric and inch threads
SPECIFICATIONS
Bar Style Plunger
Base Type Flanged
Body Size .75
Body Thread Size .75
Body Width 1.00
Distance From Front Body to End Plunger -
Distance From Surface to Plunger .44
Holding Capacity 450 lbs
Model No. 6004
Overall Height 4.18
Overall Length 5.78
Plunger Diameter .50
Plunger Height .44
Plunger Length Extended 1.59
Plunger Travel 1.50
