De-Sta-Co Horizontal Pneumatic Power Hold Down Toggle Clamp 812-U

De-Sta-Co Horizontal Pneumatic Power Hold Down Toggle Clamp 812-U
Item# 812-U
$144.45
Availability: In Stock

Product Description

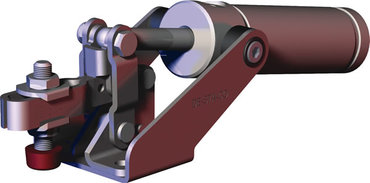

De-Sta-Co Horizontal Pneumatic Power Hold Down Toggle Clamp 812-U



Pneumatic version of our manual clamp model 201. Has built in flow restrictors

Smallest of the pneumatic hold down series clamps

Double-acting pneumatic system required to operate Pneumatic version of 201-U manual toggle clamp

Optional Sensors:810156 or 810156. These use 810156-1 band clamp (included with sensors) to mount sensor to cylinder.

Two (2) sensors required to detect both open and closed positions

Replacement Clamp Assembly: 812-U-LC

De-Sta-Co Horizontal Pneumatic Power Hold Down Toggle Clamp 812-U



Specifications

Holding Capacity Inner (N) 440

Holding Capacity Inner (Lb.) 100

Height Under Bar 0.6800

Port Size M5

Bar Opening (deg) 99.00

Length Distance Between Mount Holes 0.6300

Width Distance Between Mount Holes 0.9400

Clamping Force Inner (N) 613

Clamping Force Inner (Lb.) 136

Bar Extension 1.0200

Overall Open Length 4.57

Overall Closed Length 5.59

Overall Open Height 2.76

Overall Closed Height 1.56

Outer Load Capacity (N) 245

Outer Clamping Force (N) 413

Outer Clamping Force (Lb.) 92

Maximum Air Pressure (psig) 250.00

Maximum Air Pressure (bar) 17.24

Mounting Hole Size 0.1700

Bar Style Solid

Bar End Type Open

Maximum Mechanical Advantage 2.9:1; 4.3:1

Cylinder Bore Size (Decimal Inch) 0.7500

Spindle Thread Size #10; M5
