De-Sta-Co 605 Push Pull Plunger Destaco Toggle Clamp

De-Sta-Co 605 Push Pull Plunger Destaco Toggle Clamp
Item# 605
$19.95
Availability: In Stock

Product Description

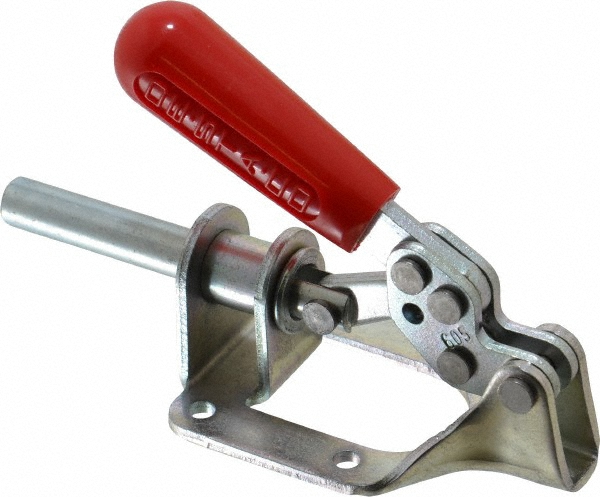

De-Sta-Co 605 Push Pull Plunger Destaco Toggle Clamp


De-Sta-Co 605 Push Pull Plunger Destaco Toggle Clamp

Straight Line Action Flanged Clamp

Ideal for clamping during soldering, gluing, locking, assembling, drilling, testing, positioning, and much more

Sizes and clamp range are distinguished by their compact design

Zinc plated, rivets made of stainless steel, with oil resistant handles

Ergo handle



SPECIFICATIONS

Bar Style Plunger

Base Type Flanged

Distance From Surface to Plunger .97

Holding Capacity 300 lbs

Mount Diameter .22

Mounting Length 1.38

Mounting Width 1.63

Overall Height 3.44

Overall Length 5.48

Plunger Height .97

Plunger Thread 5/16-18

Plunger Travel 1.25
