De-Sta-Co Vertical Pneumatic Power Hold Down Toggle Clamp 817-U

De-Sta-Co Vertical  Pneumatic Power Hold Down Toggle Clamp 817-U
Item# 817-U
$179.00
Availability: In Stock

Product Description

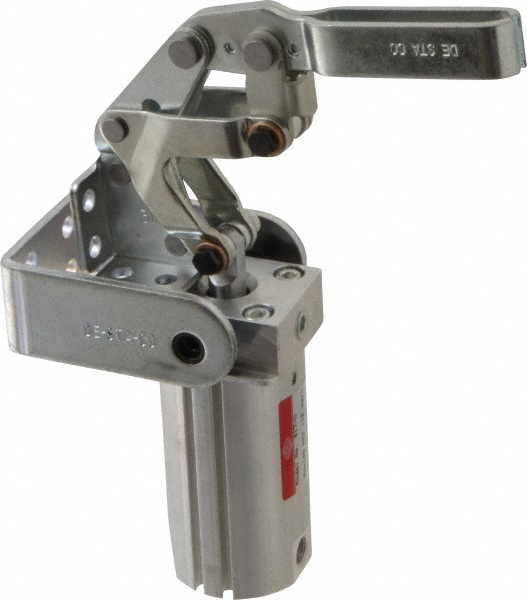

De-Sta-Co Vertical  Pneumatic Power Hold Down Toggle Clamp 817-U


De-Sta-Co Vertical Pneumatic Power Hold Down Toggle Clamp 817-U



Pneumatic version of manual clamp models 317-U and 317-S.

Dual mounting surfaces for max flexibility. Built in flow control for smooth operation, magentic ring piston for position sensing.

Accomodates either T-slot (8EA-109-1) or round (810169) sensors.

Dual mounting surfaces for maximum flexibility

Sensor ready for round or T-slot style sensors

Built-in flow restriction eliminates need for external flow controls



Specifications

Replacement Clamp Assembly: 817-U-LC

Holding Capacity Inner (N) 1670

Holding Capacity Inner (Lb.) 375

Height Under Bar (mm) 68.33

Height Under Bar (Decimal Inch) 2.6900

Port Size 1/8 NPT

Bar Opening (deg) 95.00

Length Distance Between Mount Holes 0.6300

Width Distance Between Mount Holes 1.0000

Clamping Force Inner (N) 1648

Clamping Force Inner (Lb.) 369

Bar Extension (Decimal Inch) 2.3700

Overall Open Length 3.87

Overall Closed Length 6.24

Overall Open Height 7.51

Overall Closed Height 2.44

Outer Load Capacity (N) 1005

Outer Clamping Force (N) 890

Outer Clamping Force (Lb.) 200

Maximum Air Pressure (psig) 145.00

Maximum Air Pressure (bar) 10.00

Mounting Hole Size 0.2700

Bar Style U-Bar

Bar End Type Open

Maximum Mechanical Advantage 2.5:1; 4.1:1

Sensor Compatibility Round; T-Slot
