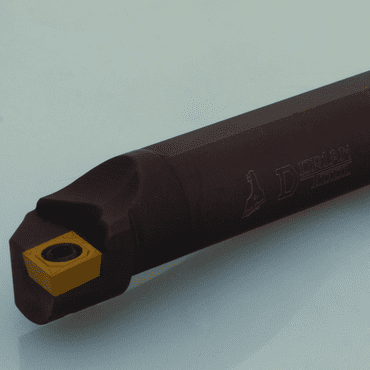

Dorian .156" Carbide Thru Coolant Boring Bar 59575 RH, -5 Style, For CD__-1.20.6_
Product Description
Technical Specifications Use Insert CD..1.20.60.2
Lead Angle 12
Right/Left Hand Right
Insert Screw TS-18.35-3M1
Dimension F .093
Coolant Inlet .040
Wrench T-6
Minimum Bore .1750
Insert IC 5/32
Overall Length 4.0000
Model Number E02.5H-SCLDR-1.2
Description 5 Lead Angle for 15 positive 80 diamond CDGW inserts
Shank Diameter .156
Brand Name Dorian
‘Deep boring
‘Coolant thru system to improve chip evacuation
