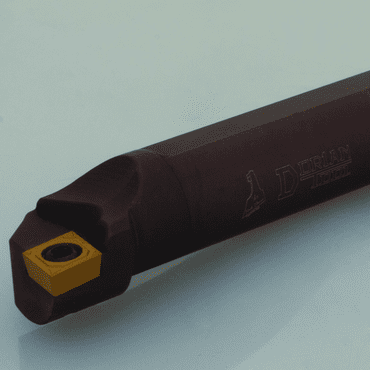

![Dorian 1" Carbide Thru Coolant Boring Bar RH, -5 Style, For CC__-32.5_ 59971 Dorian 1" Carbide Thru Coolant Boring Bar RH, -5 Style, For CC__-32.5_ 59971](https://s.turbifycdn.com/aah/yhst-46537691064911/dorian-1-carbide-thru-coolant-boring-bar-rh-5-style-for-cc-32-5-59971-44.png)
Product Description
Technical Specifications Coupling Size 1/8-27
Use Insert CCMT3252
Lead Angle 7
Right/Left Hand Right
Insert Screw TS-35.6-9M1
Dimension F .625
Coolant Inlet .197
Wrench T-15
Minimum Bore 1.2000
Insert IC 3/8
Overall Length 8.0000
Model Number E16R-SCLCR-3
Description 5 Lead Angle for 7 positive 80 diamond CCMT inserts
Shank Diameter 1.000
Brand Name Dorian
‘Deep boring ‘Coolant thru system to improve chip evacuation
