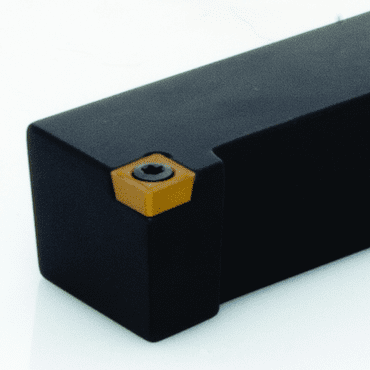

Dorian Indexable Boring Bars -- S12S-SCLCR-3 Right Hand 3/4" Shank

Dorian Indexable Boring Bars -- S12S-SCLCR-3 Right Hand 3/4" Shank
Item# 55490
$134.74
Availability: In Stock

Product Description

Technical Specifications Use Insert CC_T32.5_ Lead Angle 5‹ Right/Left Hand Right Dimension F .5000 Wrench T15 Torx Screw TS478M1 Distance Across Flats .700 Minimum Bore .9540 Insert IC 3/8 Rake Angle 8‹ Overall Length 10.0000 Model Number S12S-SCLCR-3 Shank Diameter .7500 Brand Name Dorian Depth of Cut 1.875

‘Style L ‘Negative 5‹ End & Side Cutting Edge Angle for 7‹ positive 80‹ diamond CC_T inserts
