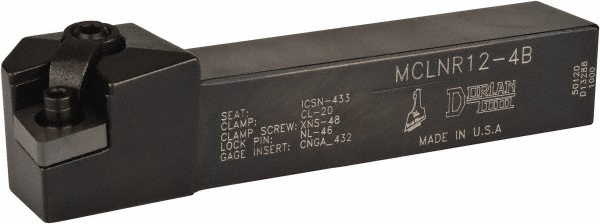

Dorian MCLNR 12-4B 3/4" SH RH CNMG Toolholder 50120 73310150120

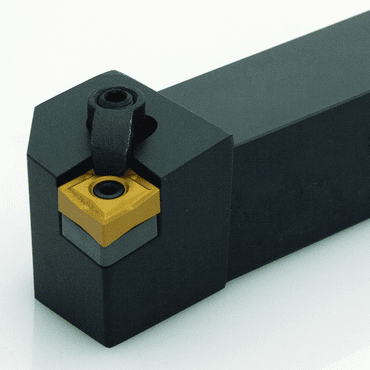

Dorian MCLNR 12-4B 3/4" SH  RH CNMG Toolholder 50120 73310150120
Item# 73310150120
$73.00
Availability: In Stock

Product Description

Dorian MCLNR 12-4B 3/4" SH  RH CNMG Toolholder 50120 73310150120
Dorian MCLNR 12-4B 3/4 x 3/4" Shank RH Turning Toolholder 50120 73310150120

USA MADE

MCLN Toolholder

Style Negative 5 degree

Rake Angle -7

Negative 80 degree diamond CNMG inserts



Technical Specifications

Lock Pin NL46

Right/Left Hand Right

IC .500

Head Width 1

Uses Insert Style CNM_43_

Gage Line 1.000

Seat Screw S46

Seat ICSN433

Clamp Screw XNS48

Clamp CL20

Wrench 3/32 & 1/8

Overall Length 4.50

Head Length 1.250

Shank Size .750

Back of Bar to Cutting Edge (Inch) 1

Insert Inscribed Circle (Inch) 1/2
