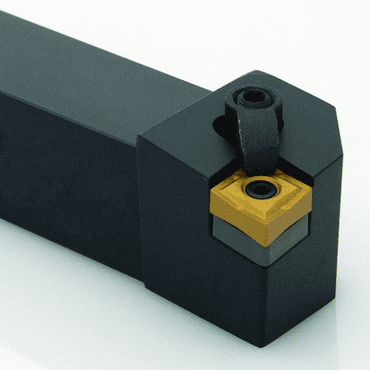

![Dorian MCLNL 16-5D - 1 x 1'' SH - LH - Turning Toolholder 50153 Dorian MCLNL 16-5D - 1 x 1'' SH - LH - Turning Toolholder 50153](https://s.turbifycdn.com/aah/yhst-46537691064911/dorian-mclnl-16-5d-1-x-1-sh-lh-turning-toolholder-50153-49.png)
Product Description
Technical Specifications Lock Pin NL58
Lead Angle 5
Right/Left Hand Left
IC .625
Head Width 1-1/4
Uses Insert Style CNM_54_
Gage Line 1.250
Seat Screw S58
Seat ICSN533
Clamp Screw XNS59
Clamp CL9
Wrench 1/8 & 5/32
Overall Length 6.00
Model Number MCLNL16-5D
Description MCLNR/L 16-5D
Weight 1.8
Type Turning Toolholders
Head Length 1.375
Brand Name Dorian
Shank Size 1.000
MCLN R/L Toolholders Style LNegative 5 End or Side Cutting Edge Angle for negative 80 diamond CNMG inserts
