Product Description
Dorian MCLNR20-4D 1-1/4" Shank RH Turning Toolholder 50132 73310150132
USA MADE
Negative 80 degree diamond CNMG inserts
Negative 5 degree
Rake Angle 7 Degrees

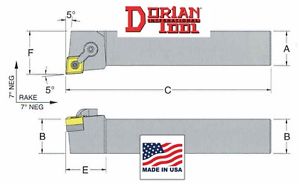

Technical Specifications
Right Hand
IC .500
Uses Insert Style CNM_43_
Gage Line 1.500
Seat ICSN433
Mounting Style Multi-Lock
Clamp CL-20
Clamp Screw XNS-48
Insert Screw NL-46
Shim ICSN-433
Wrench 3/32 & 1/8
Overall Length 6.00
Head Length 1.250
Shank Size 1.250
Back of Bar to Cutting Edge 1-1/2
Head Length 1.2500
Insert Inscribed Circle 1/2 Insert
