Product Description

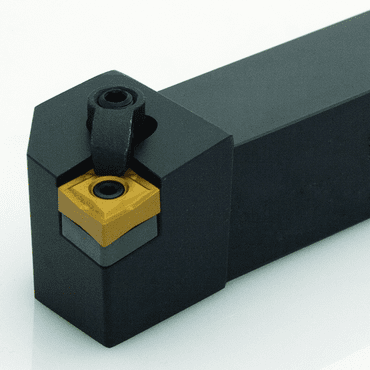

Dorian MCLNR20-5D 1-1/4" Shank RH Turning Toolholder 50156 73310150156
USA MADE

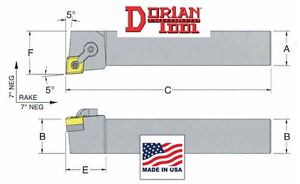

Technical Specifications
Negative 5 degree
Rake Angle 7 Degrees
Negative 80° diamond CNMG inserts
Shank Width 1.250
Lead Angle Negative 5 Degrees
Width Offset 1.500
Mounting Style Multi-Lock
Clamp CL-12
Clamp Screw XNS-510
Insert Screw NL-58
Shim ICSN-533
Shank Height 1-1/4
Overall Length 6
Head Length (Decimal Inch) 1.3750
Insert Inscribed Circle 5/8
