Product Description

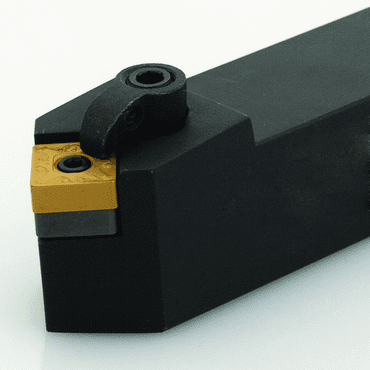

Dorian MSDNN16-4D - 1 x 1" SH Neutral - Turning Toolholder 50402 73310150402
USA MADE
MSDN N Toolholder Style D - 45-Degree Side Cutting Edge Angle for negative square SNM_ inserts
Technical Specifications
Hand Orientation Left Hand
Toolholder Style MSDN
Gage Insert SNM_432
Shank Size (A) 1.000
Shank Size (B) 1.000
Overall Length 6.00
Dimension (E) 1.375
Dimension (F) n/a
Seat / Shim Size ISSN-433
Lock Pin NL-46
Clamp Screw XNS-59
Clamp CL-9
Optional Seat Screw S-46
