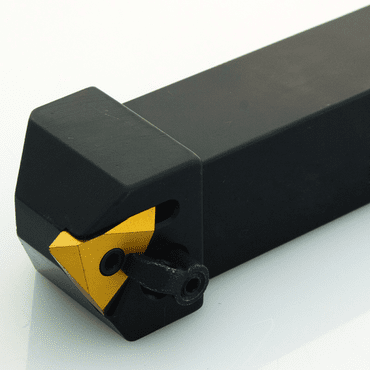

![Dorian On-Edge Indexable S16-MTHOR-3-C 1" SH; 12" OAL; RH Dorian On-Edge Indexable S16-MTHOR-3-C 1" SH; 12" OAL; RH](https://s.turbifycdn.com/aah/yhst-46537691064911/dorian-on-edge-indexable-s16-mthor-3-c-1-sh-12-oal-rh-44.png)
Product Description
Technical Specifications Use Insert TNMC32_
Right/Left Hand Right
Insert Screw GTS1
Dimension F .6870
Clamp Screw XNS36
Clamp CL19
Wrench T10
Minimum Bore 1.3880
Maximum Bore .1200
Groove Depth .120
Overall Length 12.0000
Model Number S16T-MTHOR-3-C
Shank Diameter 1.0000
Type Indexable Boring Bar
Brand Name Dorian
