Gator 5" 3 Jaw Sem Steel Tru Adj Plain Back

Gator 5" 3 Jaw Sem Steel Tru Adj Plain Back
Item# 1-151-0500
Regular price: $612.00
Sale price: $467.00
Availability: In Stock

Product Description

Gator 5" 3 Jaw Sem Steel Tru Adj Plain Back

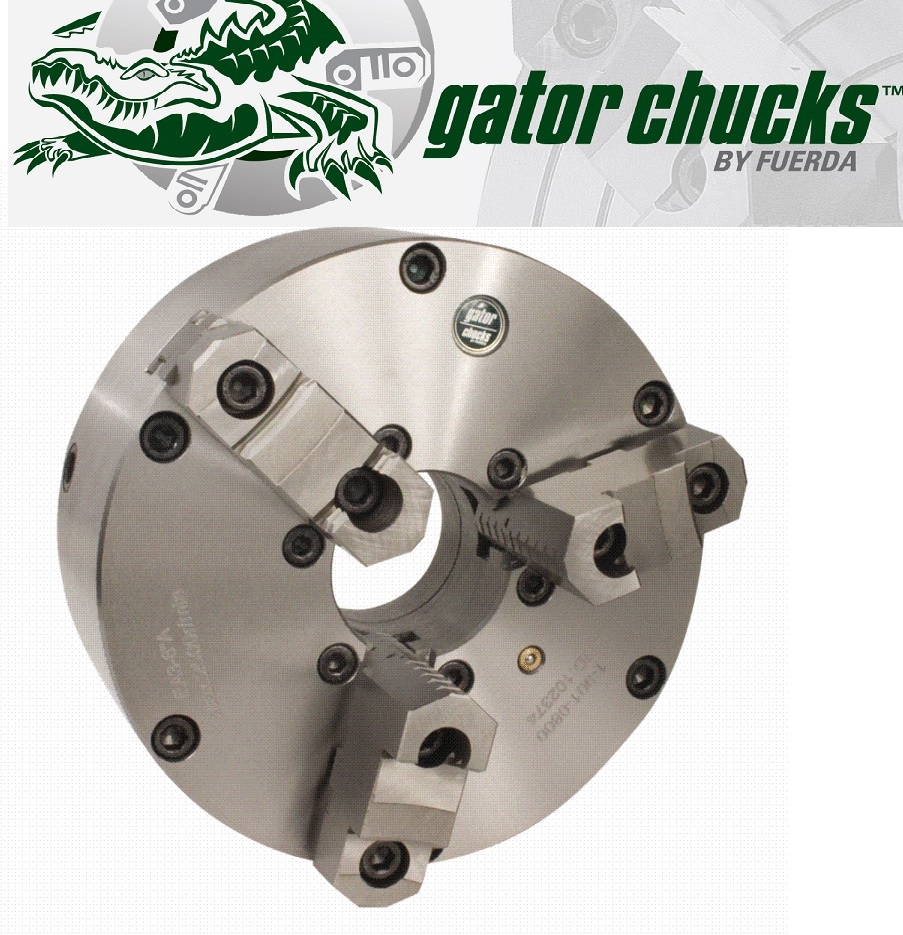

5" GATOR Lathe Chuck 3 Jaw

TECH TRU™ Adjustable Scroll Chucks provide a much higher level of accuracy and repeatability than universal or precision chucks.

Semi Steel bodies and heat treating of critical areas give Gator chucks superior accuracy and long life.

For use on grinders, lathes, rotary tables, indexers and a variety of milling applications.

Easy Set Up, Easy Use!

Along with hardened steel adapters, Gator provides a full complement of spare parts, including soft solid and soft top jaws. Steel Adapters are heat treated for higher accuracy, rigidity and longer life.

Thru Hole 1.654

RPM MAX 3500

3 Jaw with Fine Adjustment

3 Pinion Design

ANSI Master & Top Jaws

2 Piece Tongue & Groove Jaws

4" to 50" Diameter

0.0004" T.I.R

2 Year Warranty

A, D, L & Threaded Fully Finished

Steel Adapters

Produced with Certified Raw Materials

Special Solutions Available up to 50"
