Product Description
Technical Specifications Center Height 4-1/8
Weight 17 lbs
Type Motorized Spin Indexer
Collet Style 5C
Brand Name Harig

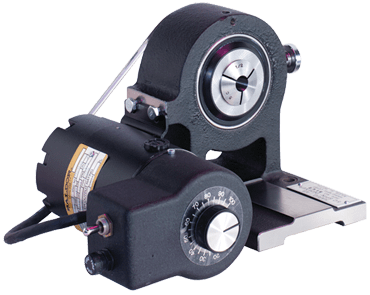

◾Motorized 5C Spin Indexer
◾Sturdy and dimensionally stable cast iron housing.
◾Large preloaded ball bearings are durable and accurate - ideal for motorization.
◾5C collet holder ground in assembly to under 0.0001 runout.
◾24 Division index plate with precision index pins locks in every 15° to /- 30 seconds
◾Draw sleeve for quick set-ups of collets and accessories.
◾Extended base for minimal deflection even with heavier parts.
◾1/4 Diameter mounting hole on top of housing for diamond dresser.
◾Collet: 5C up to 1
◾24 division indexing: /- 30 seconds
◾Spindle runout: 0.00001
◾Spindle parallel to base: 0.0002 in 6
◾Motor: 1/15HP 110V AC
◾Variable speed: 50-450 RPM
