Product Description

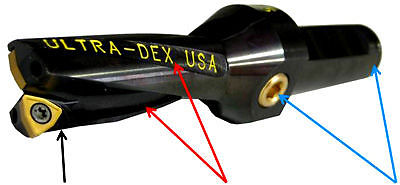

Steel 2xD Indexable Drill with a 1.375″ Diameter 2.833″ Drill Depth 1.250″ Shank Length to hold (2) WCMX 32.52 Coolant Thru
Product Specs
BD (Body Diameter) 1.73
DC (Cut Diameter) 1.375
DCONms (Connection Diameter) 1.25
L (Overall Length) 6.505
LF (Functional Length) 2.833
LPR (Protruding Length) 3.866
LS (Length of Shank) 2.619
LU (Usable Length) 2.75
