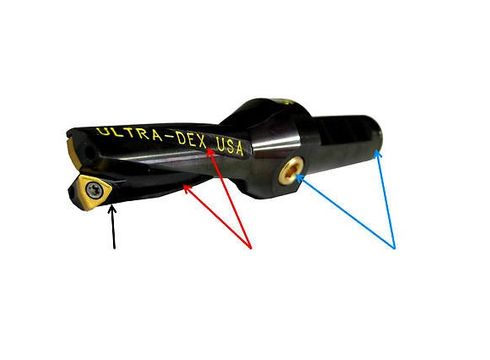

Indexable Drill 2.250" Coolant Thru 4xD Shank Drilling
Product Description

Steel 4xD Indexable Drill with a 2.250″ Diameter 9.512″ Drill Depth 1.500″ Shank Length to hold (2) WCMX 433 Coolant Thru
Product Specs
BD (Body Diameter)
2.47
DC (Cut Diameter)
2.25
DCONms (Connection Diameter)
1.5
L (Overall Length)
13.222
LF (Functional Length)
9.512
LPR (Protruding Length)
10.347
LS (Length of Shank)
2.875
LU (Usable Length)
9
